Quick answer: A common 125 surface finish example is 125 µin Ra, meaning an arithmetic-average roughness of 125 microinches. This is approximately 3.2 µm Ra after rounding the dimensional conversion of 3.175 µm. However, the number 125 is incomplete by itself. The drawing or specification must confirm the unit, roughness parameter, surface location, and whether the value is an acceptance limit, a target, or part of a permitted range.

Do not assume every unqualified “125” note means 125 µin Ra. It might follow a drawing-wide convention, but that convention must be verified. The value also does not define Rz, lay, waviness, flatness, appearance, or the manufacturing process required to create the surface.

What Does 125 Mean in a Surface-Finish Callout?

The conversion is straightforward: one microinch equals 0.0254 micrometre, so 125 µin equals 3.175 µm. Drawings and reference charts commonly round that result to 3.2 µm. This conversion does not turn Ra into Rz; it only expresses the same Ra magnitude in another unit.

Another important question is whether the stated value is a maximum, nominal target, or range. For example, “125 µin Ra maximum” provides a different acceptance instruction from a target centered on 125 µin Ra. A number-only callout should not be interpreted beyond the drawing convention that controls it.

Annotated 125 Surface Finish Example

Illustrative callout — not a universal symbol format

                         125 µin Ra
                              │
                              ├── value: 125
                              ├── unit: microinches (µin)
                              └── parameter: Ra

  PART SURFACE  ────────── surface-texture symbol
       ↑                         │
       │                         ├── applies to the indicated surface
  leader or placement           ├── optional lay instruction: separate detail
                                 └── optional process/material-removal note:
                                     separate requirement

This diagram is a decoding aid rather than a substitute for the conventions used on a particular project. Surface-texture symbols and the placement of supplementary information can vary with the drawing system. Confirm the applicable drawing legend, title-block notes, and project documentation before releasing the part for manufacturing or inspection.

• Numerical value: “125” gives a magnitude but is not complete without the applicable unit and parameter.
• Unit: Confirm whether the value is in microinches, micrometres, or another explicitly defined unit.
• Parameter: Ra and Rz describe different calculations. Never substitute one merely because a conversion chart shows both.
• Surface location: The symbol or leader must make clear which face, diameter, bore, edge, or local area carries the requirement.
• Lay: If tool-mark direction affects function, it requires separate definition or interpretation.
• Material removal or process note: A process restriction is distinct from the roughness value. A roughness requirement alone does not mandate turning, milling, grinding, polishing, or another route.
• Acceptance statement: Determine whether 125 is an upper limit, lower limit, target, or range and how nonconforming readings will be handled.

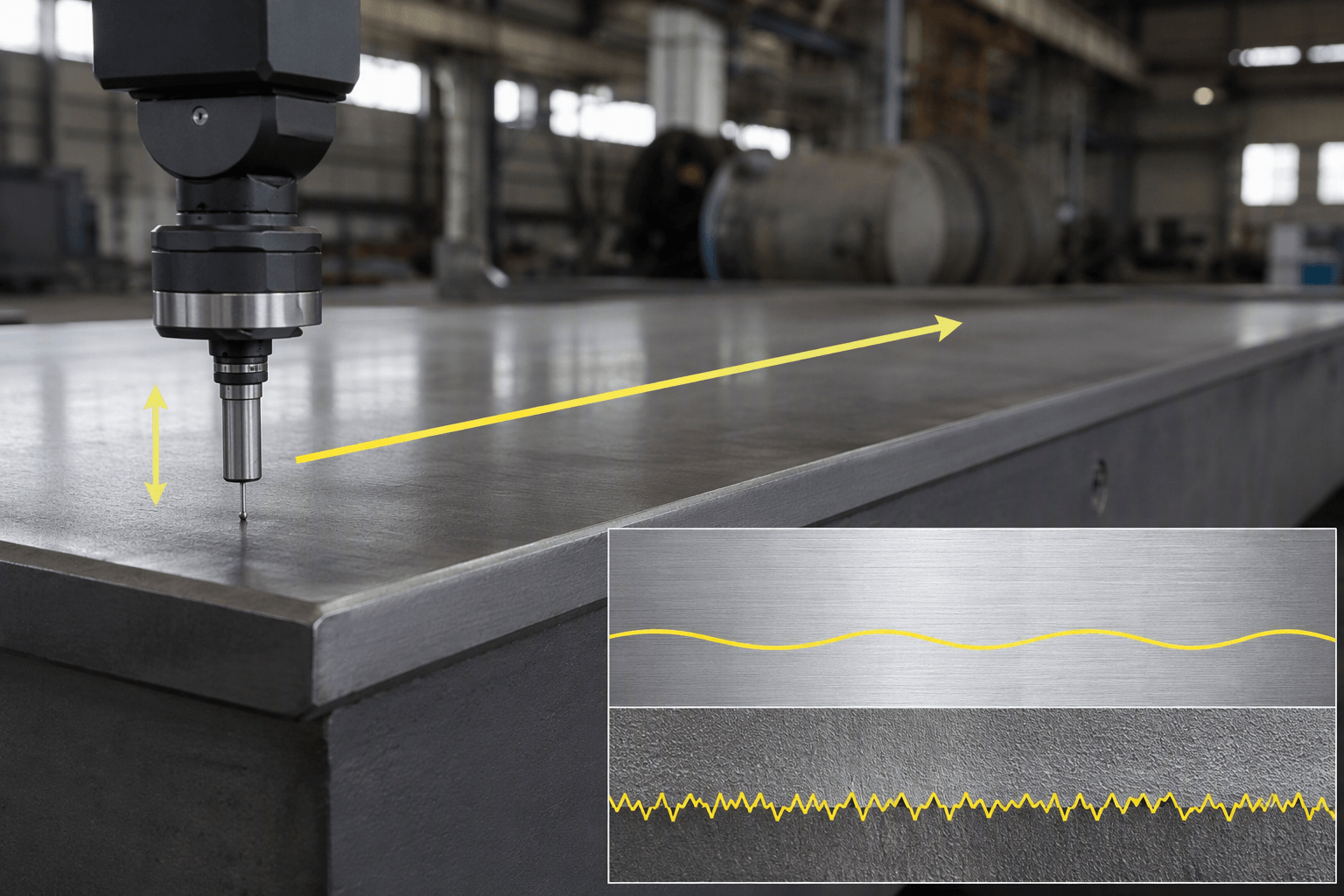

Ra, Rz, Lay, and Waviness Are Different Characteristics

A surface is not fully described by one Ra value. Its measured profile can contain fine irregularities, broader undulations, directional tool marks, and form variation. These characteristics can affect a part differently even when two surfaces report the same Ra.

Same hypothetical profile

       /\/\__/\/\____/\/\__/\/\____/\/\
       fine deviations       broader undulation
       └── roughness ──┘     └── waviness ──┘

  Lay direction:  ═══════════════════
  Typical trace:             ↑
                             │ measurement direction
                             │ often selected across the lay

Ra and Rz can be calculated from the same measured profile, but they emphasize different aspects of that profile. Two profiles can have similar Ra readings while having different isolated peaks, valleys, spacing, or directional patterns. Therefore, a fixed statement such as “125 Ra equals a particular Rz” is not reliable for acceptance.

How a 125 Requirement Relates to Surface Function

The correct requirement starts with what the surface must do. A 125 µin Ra callout may be relevant in an early design or drawing review, but the value alone cannot guarantee fit, sealing, movement, appearance, coating behavior, or service performance. The functional surface may need Ra plus controls for lay, waviness, geometry, cleanliness, or another characteristic.

For example, a hypothetical turned diameter and milled face could both be reported near 125 µin Ra while looking and functioning differently because their lays and profile shapes differ. Likewise, a formed sheet-metal surface may retain material texture that is not meaningfully specified by copying a machined-surface note without reviewing the intended function.

Manufacturing examples are therefore illustrative, not guaranteed results. Material condition, tool geometry, machine setup, cutting conditions, part rigidity, feature access, subsequent finishing, and measurement method can all influence the resulting surface. The selected route must be assessed against the complete part and requirement.

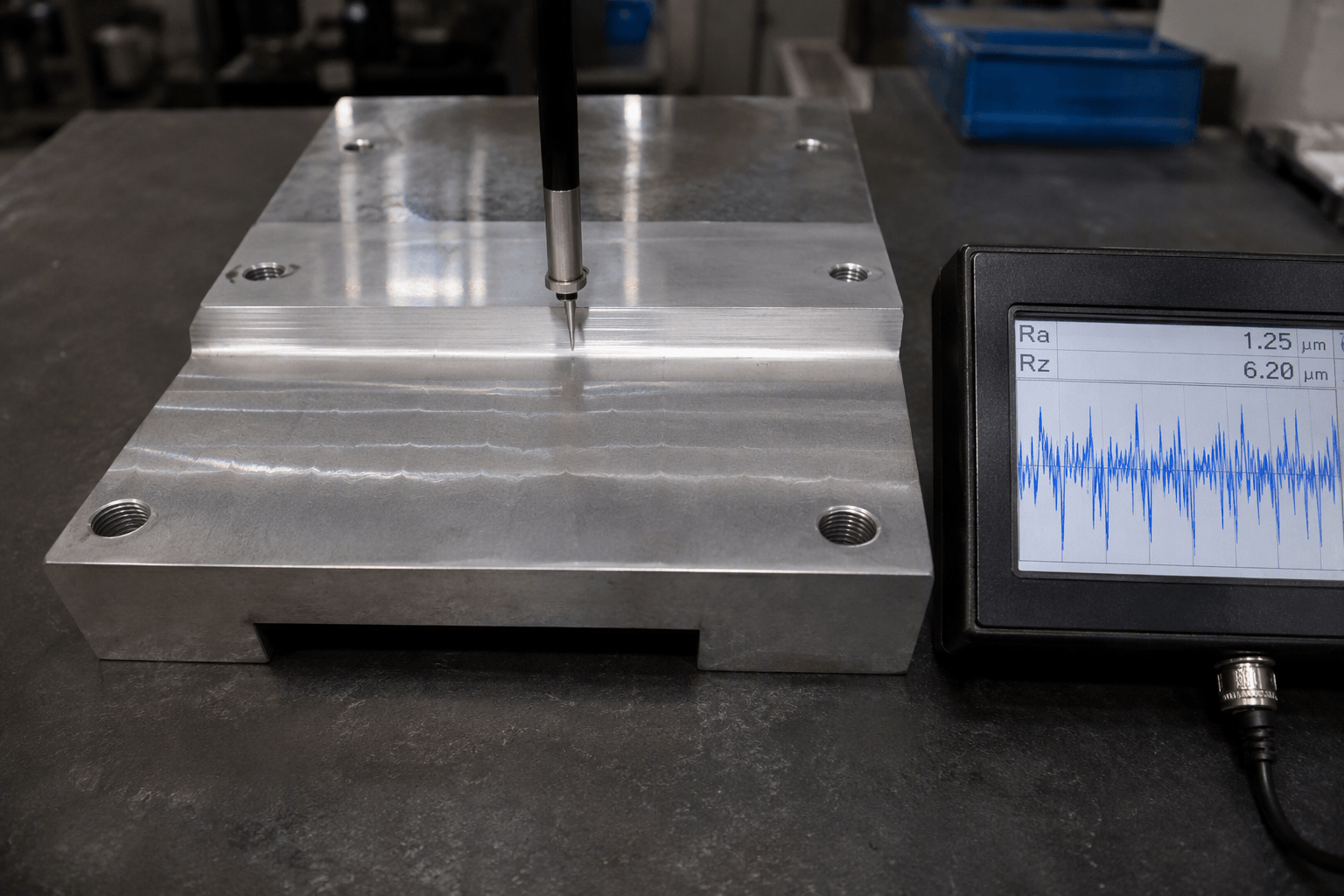

How to Verify a 125 Surface Finish

Acceptance requires more than placing a profilometer on an accessible area and reading the display. Before measurement, the drawing or quality plan should establish what is being measured and how the result will be judged.

1. Confirm the controlled surface. Identify the precise face, bore, diameter, track, or local zone. Avoid measuring a convenient nearby area unless the documentation permits it.
2. Confirm parameter and unit. Set and report Ra in µin for a 125 µin Ra requirement, or use the explicitly required metric expression. Do not report Rz as if it were Ra.
3. Establish measurement direction. A profile trace is often taken perpendicular to the predominant lay because this can capture the principal roughness variation. Complex, circular, or nondirectional patterns may require another defined approach. The project requirement controls.
4. Select a suitable method. A contact profilometer may be appropriate for many accessible surfaces, while geometry, material, delicacy, curvature, or surface condition may call for another suitable method. Method selection should match the feature and acceptance plan.
5. Define cutoff and filtering. These settings influence which profile components are treated as roughness rather than waviness or other variation. They should not be changed merely to obtain a favorable result.
6. Define evaluation length. The assessed length and number or placement of traces affect how representative the result is. Short features or interrupted surfaces need particular attention.
7. State the acceptance rule. Record whether 125 is a maximum, target, or range; how many locations are measured; and whether each reading or an aggregate result controls acceptance.
8. Report the result completely. Include the parameter, unit, surface location, trace direction, relevant instrument settings, and result required by the drawing or quality plan.

If the drawing only says “125” and provides no controlling convention, clarification should occur before manufacturing and final inspection. Quietly assuming Ra, microinches, a particular cutoff, or a maximum limit can cause the designer and manufacturer to evaluate different requirements.

125 Surface Finish Specification Checklist

• Is the callout explicitly written as 125 µin Ra or approximately 3.2 µm Ra?
• Does the drawing identify the exact controlled surface?
• Is the value a maximum, target, minimum, or range?
• Does function require Rz, lay, waviness, flatness, or another separate control?
• Is the measurement direction defined or inferable from an approved project convention?
• Are cutoff, filtering, and evaluation length specified where needed?
• Is the measurement method suitable for the material and feature geometry?
• Are process restrictions stated separately rather than inferred from the roughness value?
• Does the drawing or quality plan define final acceptance?
