Aluminum Sheet Metal Fabrication Service
Aluminum sheet metal fabrication is a key process in manufacturing lightweight, corrosion-resistant parts across industries. Known for its versatility and durability, aluminum offers many benefits that make it a popular choice for projects requiring strength, conductivity, and aesthetic appeal.
In this article, we’ll explore what aluminum sheet metal fabrication is, the materials used, its advantages and challenges, surface treatments, and how smart design can help reduce costs.
What is Aluminum Sheet Metal Fabrication?
Aluminum sheet metal fabrication involves cutting, bending, and assembling aluminum sheets to create finished parts or products. This process leverages the unique properties of aluminum to produce high-quality components for various industries, including automotive, aerospace, electronics, and construction.
Advantages of Aluminum Sheet Metal Fabrication
- Lightweight: Aluminum weighs about one-third that of steel, making it an ideal material for projects where reducing weight is critical, such as in automotive and aerospace applications.
- Corrosion Resistance: Aluminum naturally forms a protective oxide layer, giving it excellent resistance to corrosion, especially in outdoor or marine environments.
- High Strength-to-Weight Ratio: Despite being lightweight, aluminum provides strong structural integrity, making it suitable for applications that require both strength and lightness.
- Electrical Conductivity: Aluminum is a great conductor of electricity, making it ideal for electrical components.
- Recyclability: Aluminum is highly recyclable, and the recycling process consumes much less energy compared to producing new aluminum, making it an environmentally friendly option.
Challenges and Disadvantages of Aluminum Sheet Metal Fabrication
- Cost: Compared to some other metals like steel, aluminum can be more expensive in certain grades, especially if high-strength or specialized alloys are required.
- Weldability: Welding aluminum requires special techniques and equipment, as it is more prone to warping and requires careful temperature control.
- Scratching: Aluminum is softer than many other metals, which makes it more prone to scratches or dents, particularly during handling and fabrication.
Aluminum Sheet Metal Fabrication: Common Materials and Their Differences
Aluminum alloys are categorized into series based on their properties, composition, and applications. When selecting the right material for sheet metal fabrication, it’s important to consider factors like strength, corrosion resistance, formability, and weldability. Here are some of the most commonly used aluminum alloys in sheet metal fabrication, along with their differences:
Aluminum 1100 (Pure Aluminum)
- Composition: 99% pure aluminum.
- Strength: Low tensile strength (around 90 MPa), but excellent ductility.
- Corrosion Resistance: Outstanding corrosion resistance in most environments, particularly in food and chemical handling.
- Formability: Extremely easy to form, bend, and weld due to its softness and ductility.
- Applications: Ideal for applications where strength is not critical, such as food processing equipment, heat exchangers, and decoKey Difference: It is the most formable and corrosion-resistant but lacks significant strength compared to alloyed aluminum.rative elements.
Aluminum 3003 (Most Commonly Used Alloy)
- Composition: Aluminum alloyed with small amounts of manganese (about 1.2%).
- Strength: Higher strength than 1100 (about 120 MPa) but still very formable.
- Corrosion Resistance: Excellent corrosion resistance, especially in marine and acidic environments.
- Formability: Very good, suitable for bending, spinning, and forming processes.
- Weldability: Highly weldable, making it a popular choice for general-purpose fabrication.
- Applications: Widely used in cooking utensils, roofing, siding, storage tanks, and automotive parts.
- Key Difference: Balances strength and formability, making it ideal for applications requiring moderate strength and high corrosion resistance.
Aluminum 5052 (Marine Grade Alloy)
- Composition: Aluminum alloyed with magnesium (about 2.5%).
- Strength: Higher strength than 3003 (about 210 MPa), with superior fatigue resistance.
- Corrosion Resistance: Excellent corrosion resistance, particularly in saltwater environments.
- Formability: Very good, though slightly more difficult to form than 3003 due to its higher strength.
- Weldability: Excellent, making it a top choice for welded structures in marine and industrial applications.
- Applications: Common in marine environments, fuel tanks, pressure vessels, and outdoor architectural applications.
- Key Difference: Offers a good balance of strength, corrosion resistance, and formability, making it ideal for environments exposed to water and moisture.
Aluminum 6061 (Structural Alloy)
- Composition: Contains magnesium (1%) and silicon (0.6%), allowing it to be heat-treated for added strength.
- Strength: High strength (up to 310 MPa), one of the strongest commonly used alloys in fabrication.
- Corrosion Resistance: Good corrosion resistance, though not as high as 5052.
- Formability: Moderate formability; can be machined and formed but is harder to work with than 1100 and 3003.
- Weldability: Very good, though the heat treatment may affect the weld zone, reducing strength in welded areas.
- Applications: Used in structural applications like aircraft components, automotive frames, bicycle frames, and heavy-duty structures.
- Key Difference: Known for its high strength-to-weight ratio, making it ideal for structural applications requiring both strength and corrosion resistance.
Aluminum 7075 (Aerospace Grade Alloy)
- Composition: Primarily alloyed with zinc (5.6%) and small amounts of magnesium, copper, and chromium.
- Strength: Extremely high strength (up to 570 MPa), comparable to many steels.
- Corrosion Resistance: Moderate to good, though not as corrosion-resistant as 5052 or 3003.
- Formability: Lower formability due to its high strength, but excellent machinability.
- Weldability: Difficult to weld, and welding can compromise its mechApplications: Used in high-stress applications like aircraft parts, military equipment, and high-performance automotive components.anical properties.
- Applications: Used in high-stress applications like aircraft parts, military equipment, and high-performance automotive components.
- Key Difference: Known for its superior strength, making it ideal for aerospace and other critical high-stress applications.
The choice of aluminum alloy depends on your project’s specific requirements.
If your priority is high corrosion resistance, 1100 or 5052 might be the best choices.
If strength is more important, 6061 or 7075 could be better suited.
Balancing these factors with formability and weldability will ensure the best outcome for your sheet metal fabrication project.
Fabrication Processes for Aluminum Sheet Metal
- Cutting: Aluminum sheets can be cut using methods like laser cutting, waterjet cutting, or shearing. These techniques ensure precise cuts with minimal material waste.

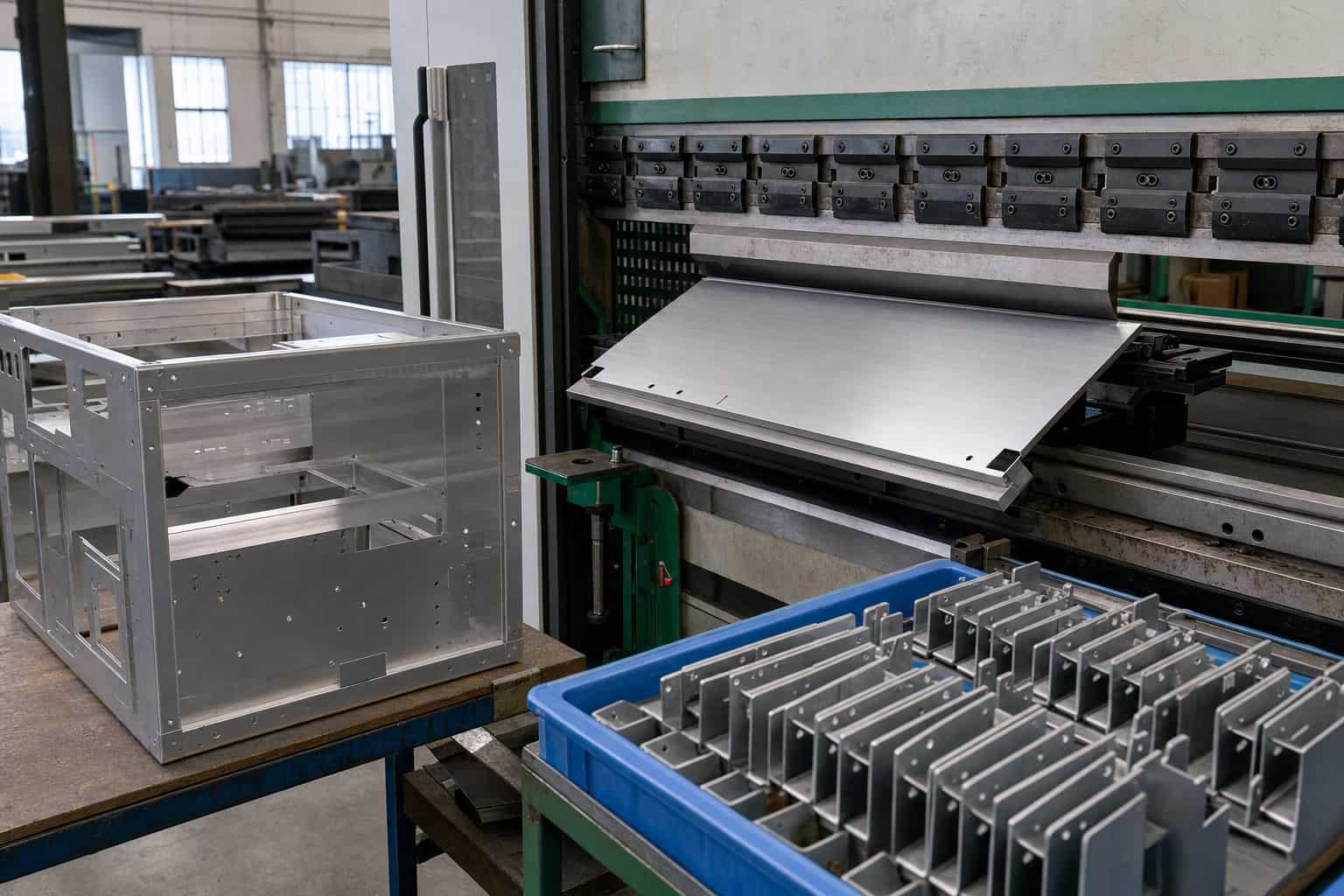

- Bending: Aluminum’s malleability allows it to be bent into complex shapes. This process is commonly done with press brakes or rollers.
- Forming: Stretching or stamping processes are often used to shape aluminum sheets into curved or angled components.
- Welding: Special techniques such as TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding are required for aluminum to avoid warping and ensure strong welds.
- Assembling: Riveting, fastening, or bonding methods are used to assemble aluminum sheet metal parts into final products.
Surface Treatments for Aluminum Sheet Metal
- Anodizing: A popular treatment that increases corrosion resistance and allows for decorative coloring.
- Powder Coating: This technique adds a protective layer to the aluminum, available in various colors and finishes, while enhancing resistance to corrosion and wear.
- Polishing: For applications where appearance is key, aluminum can be polished to a high-gloss finish, adding aesthetic value.
Cost-Saving Design Tips in Aluminum Sheet Metal Fabrication
Aluminum sheet metal fabrication offers numerous opportunities for cost savings by optimizing designs and fabrication techniques. Below are some key tips to help reduce costs without compromising quality:
Material Selection
- Choose the Right Alloy: Opt for the most cost-effective aluminum alloy that meets your application’s requirements. Lower-cost alloys like 3003 and 5052 offer a balance of strength and corrosion resistance, making them economical choices for many applications.
- Optimize Sheet Thickness: Thinner sheets can reduce material costs, but ensure the thickness is adequate for structural integrity. Avoid over-engineering by selecting the appropriate thickness for the application.
Simplify the Design
Minimize Complex Bends: Simple designs with fewer, straightforward bends reduce setup and fabrication time. Complex bending often requires more labor and specialized tools, driving up costs.
- Standardize Hole Sizes: Using consistent hole sizes throughout the design can reduce tool changes, speeding up the punching process and reducing costs.
- Limit Tight Tolerances: Only specify tight tolerances where absolutely necessary. Relaxing tolerances in non-critical areas can lead to faster production and lower costs.
Optimize Part Nesting
Maximize Material Utilization: Efficient nesting of parts on aluminum sheets reduces scrap and waste. By carefully arranging parts on the sheet, you can minimize material usage and lower costs.
- Use Standard Sheet Sizes: Design your parts to fit within standard aluminum sheet sizes to minimize cutting and reduce waste. Custom sheet sizes can increase costs.
Reduce Welding and Fasteners
Use Formed Joints Over Welded Joints: Where possible, opt for formed joints or snap-fit designs instead of welded joints. Forming is faster and cheaper than welding, reducing both labor and material costs.
- Consolidate Fasteners: Limit the number of fasteners, bolts, or rivets used in the design. Fewer fasteners mean reduced assembly time and lower material costs.
Leverage Laser Cutting
Laser cutting can reduce the need for secondary operations like deburring, saving time and labor. It’s ideal for complex shapes and offers high precision with minimal waste.
Consider Modular Designs
Break complex parts into modular sections that are easier and cheaper to manufacture and assemble. Modular designs can simplify production and enable the use of more cost-effective processes for individual components.
Surface Finishing Optimization
Some surface finishes, like anodizing, provide excellent durability and aesthetics at a lower cost than other treatments like powder coating or plating. Select the most economical finish that meets your project’s needs.
Batch Production
Whenever possible, opt for larger production runs. Fabricators often offer discounts for bulk orders, which can significantly reduce the per-part cost.
Applications of Aluminum Sheet Metal Fabrication
Aluminum sheet metal fabrication is used across various industries due to its versatility and lightweight properties:
- Aerospace: High-strength aluminum alloys like 6061 and 7075 are commonly used in aircraft parts and frames due to their excellent strength-to-weight ratios.
- Automotive: Aluminum is used in vehicle bodies, engine components, and heat exchangers to reduce weight and improve fuel efficiency.
- Construction: Aluminum’s corrosion resistance makes it ideal for building facades, roofing, and structural components, particularly in coastal or humid environments.
- Electronics: Aluminum’s conductivity and thermal properties make it a common choice for heat sinks, enclosures, and electrical housings.
- Consumer Goods: Products such as cookware, packaging, and appliances frequently use aluminum for its lightweight and corrosion-resistant properties.
Conclusion
Aluminum sheet metal fabrication offers countless possibilities, but selecting the right material and design techniques is crucial for maximizing your project’s success. Send us your drawings today for a customized quote, and let us help you choose the best aluminum alloy and fabrication process to meet your specifications.
