Mastering the Aluminium Drilling Process: A Complete Industrial Guide for High-Volume Buyers

Introduction

In large-scale metal fabrication, aluminium drilling is not just a basic process—it’s a precision-dependent operation with downstream implications for product tolerance, surface quality, and assembly integrity. For overseas wholesale buyers, especially those sourcing for sectors like EV battery enclosures, medical carts, vending machines, or agricultural equipment, understanding the technical nuances of aluminium drilling ensures effective RFQs, accurate specifications, and reduced cost from avoidable defects.

This comprehensive guide explores industrial best practices in aluminium drilling, combining material science, tooling decisions, and operational parameters—tailored specifically for decision-makers who need high-volume, repeatable, and spec-compliant parts.

1. Choosing the Right Drill Bit for Aluminium: What Procurement Needs to Specify

The foundation of successful aluminium drilling starts with drill bit selection. As a buyer, this impacts not only tooling life but also hole accuracy, cycle time, and risk of built-up edge (BUE).

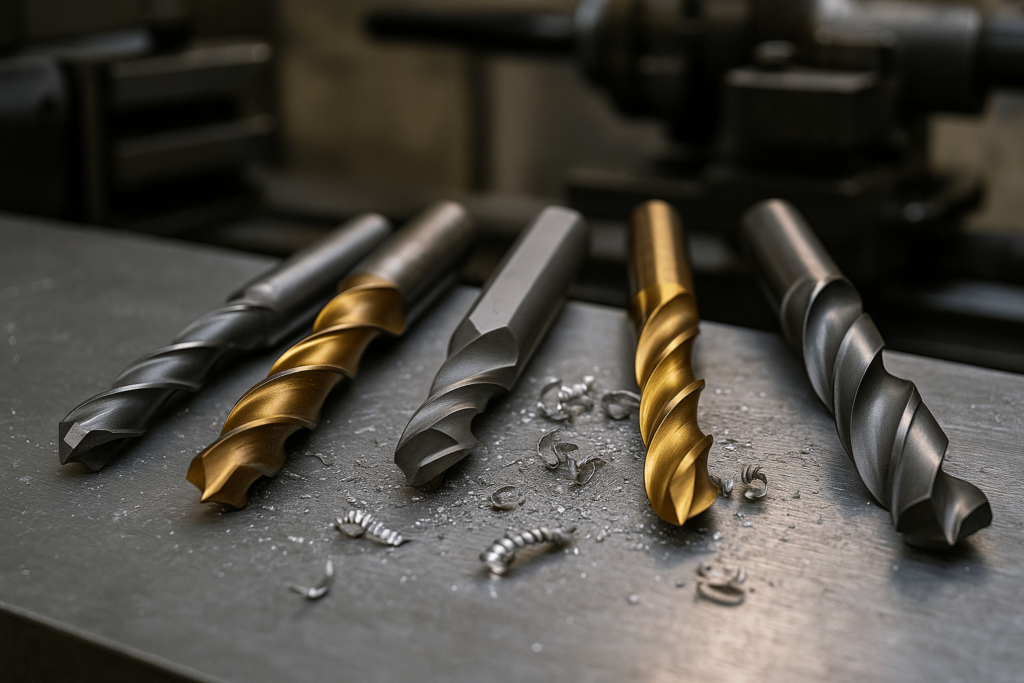

Key Industrial-Grade Drill Bit Types

Drill Bit Type	Suitable For	Benefits
HSS (High Speed Steel)	Soft alloys (1000, 3000)	Cost-effective, flexible for general use
Cobalt-Coated HSS	Mid-hard alloys (5000, 6000)	Higher heat resistance, longer tool life
Tungsten Carbide	Harder alloys (7075)	Maintains rigidity, dissipates heat efficiently

Important Specification Details to Include in RFQs:

• Drill tip angle (118° or 135° depending on alloy)
• Coating (TiN, TiAlN, black oxide)
• Drill bit tolerance class (H7/H8 for critical fits)
• Cooling compatibility (especially for CNC operations)

🔧 Pro Tip for Buyers: Always align drill bit specs with material series, hole diameter, and drilling method (manual, semi-auto, CNC) in your purchase requests.

2. Matching Drill Strategy with Aluminium Alloy Types

Aluminium isn’t uniform—its alloys range vastly in machinability, ductility, and strength. Understanding the alloy family helps determine feed rate, tooling, and chip control measures.

Alloy Characteristics Breakdown:

Alloy Series	Main Alloying Element	Properties	Recommended Bit Type
1000	Pure Aluminium	Soft, ductile, conductive	Uncoated HSS
2000	Copper	High strength, low corrosion resistance	HSS w/ black oxide
3000	Manganese	Good strength, corrosion-resistant	TiN-coated HSS
4000	Silicon	High ductility, wear-resistant	Cobalt
5000	Magnesium	Strong, non-heat treatable	Coated HSS, cobalt
6000	Mg & Si	Versatile, weldable	HSS, TiN
7000	Zinc	Strongest, aerospace-grade	Tungsten carbide

📌 Sourcing Tip: When submitting a quote, always clarify:

• Alloy type and tempers (e.g., 6061-T6 vs. 6061-O)
• Tolerance requirements post-drilling
• Surface finish needed (especially for decorative or sealing applications)

3. The Role of Lubrication: Preventing Heat and Tool Wear

Lubrication is more than friction control—it’s a vital part of tool life management, hole surface integrity, and thermal distortion minimization.

Effective Lubricant Types:

Lubricant Type	Example	Use Case
Water-based soluble oils	Semi-synthetic coolant	General CNC drilling
Petroleum-based oils	WD-40, kerosene	Manual or handheld drilling
Alcohol-based	Isopropyl alcohol	High-speed micro drilling

Buyer Relevance:

• Request confirmation that lubricant is compatible with downstream processes (e.g., powder coating, anodizing)
• Ensure proper chip evacuation system is in place when using sticky lubricants

🛠️ Note: Poor lubrication increases burr formation, which directly raises deburring costs in mass production.

4. Safety Measures for Industrial-Scale Aluminium Drilling

Safety in a factory setting is not just compliance—it’s cost-saving. Downtime, injuries, and equipment damage often stem from poor safety controls.

Key Safety Standards to Ensure:

• Use of CNC clamps or jigs to prevent hand-held operations
• Mandatory operator PPE (glasses, no gloves near spindles)
• Drill press emergency stop proximity
• Scheduled inspection of bit wear to avoid fractures

⚠️ For buyers, ensure the factory adheres to ISO 9001 safety-linked SOPs in drilling—this often aligns with quality consistency and lowers production risk.

5. Pressure Control: The Hidden Factor in Cost Efficiency

Excessive force during drilling causes built-up edge, bit deflection, and even micro-cracks in aluminium—especially in thin sheets or CNC applications.

Why Buyers Should Care:

• Poor pressure control = Post-processing costs increase (re-drilling, polishing)
• Improperly applied feed = reduced tooling lifespan (more frequent replacement)

🎯 When sending technical drawings:

• Specify acceptable burr height (e.g., < 0.15mm)
• Indicate preferred entry/exit strategy (especially for sandwich parts)

🧠 Engineering Insight: At KDM, we’ve found a balance of moderate RPM + precise feed + pilot hole gives the best results across 5000 and 6000 alloys.

6. Feed Rate and RPM: The Parameters That Define Precision

Incorrect RPM and feed settings not only reduce drilling quality but compromise dimensional stability and hole roundness—especially critical for multi-hole jigs.

Suggested Speeds (SFM) for Common Alloys:

Alloy Series	Suggested Speed (SFM)	Feed Rate (IPR)
1000	250-300	0.003 – 0.006
5000	200-275	0.005 – 0.010
7000	175-225	0.004 – 0.008

📌 What to Include in RFQs:

• Maximum hole depth
• Hole diameter
• Any stacking or multi-part drilling (affects chip evacuation)

🔍 Tip: Deep hole drilling (>3xD) requires peck drilling cycles—if not specified, hole straightness might be compromised.

7. Following a Controlled Drilling Process: Best Practices

Consistency in process equals consistency in quality. While the machine operator carries out drilling, your documentation guides the standard.

Step-by-Step Process Overview (Used in Sheet Metal Fabrication)

1. Mark drill points clearly (laser templates or visible dye)
2. Clamp the workpiece tightly to eliminate vibration
3. Drill a pilot hole at slow RPM
4. Switch to larger drill with proper SFM/feed
5. Apply lubricant at contact point
6. Remove swarf regularly for deep holes
7. Post-drill: perform burr check and optional chamfering

🔧 Buyer’s Input:

• Indicate whether holes will be tapped, countersunk, or reamed
• Include hole quality class required (e.g., ISO IT10 or finer)

Common Drilling Challenges & Solutions (Factory View)

1. Drill Bit Breakage

• 🔧 Solution: Use pilot holes; reduce feed; use coated carbide for hard alloys

2. Chip Clogging

• 🔧 Solution: Increase RPM slightly; apply air coolant; use sharp bits

3. Burr Formation

• 🔧 Solution: Lower feed; inspect bit sharpness; use lubricant

4. Oval Holes or Tolerance Deviation

• 🔧 Solution: Stabilize clamping; validate tool concentricity; ream if needed

📌 Each issue above can trigger quality rejects, additional rework, and shipment delays—all avoidable with controlled inputs.

Buyer’s RFQ Checklist for Aluminium Drilling

Before placing an order with a metal products supplier, ensure your RFQ covers:

• ✅ Aluminium alloy grade & thickness
• ✅ Required hole size, tolerance & position
• ✅ Surface finish requirements
• ✅ Acceptable burr tolerance
• ✅ Quantity and production timeline
• ✅ Machining vs. manual drilling preference

🧩 Template Tip: Want a pre-formatted RFQ template including aluminium drilling specs? Request our editable version.

Frequently Asked Questions (FAQ)

Q: What’s the best drill bit for 7075 aluminium?

A: Use tungsten carbide or cobalt-coated HSS bits due to the material’s hardness and wear-resistance needs.

Q: How can I avoid aluminium chips sticking to the drill?

A: Use a sharp drill bit, proper SFM, and lubrication like WD-40 or kerosene to reduce friction and chip fusion.

Q: What tolerance can I expect with CNC aluminium drilling?

A: Typically within ±0.05mm with proper setup; finer tolerances require reaming or honing post-drill.

Conclusion: Precision Today, Savings Tomorrow

Aluminium drilling may appear basic, but in high-volume B2B fabrication, it determines whether your parts arrive on time, on spec, and cost-effective. By understanding tooling selection, drilling speeds, material behavior, and process control, you reduce waste, speed up production, and eliminate post-processing surprises.

When sourcing from a partner like KDM or similar factories, a well-prepared buyer spec sheet directly increases the quality and reliability of outcomes.
