The Engineer’s Verdict: 5052-H32 vs. 6061-T6—A Guide to Profitable Material Specification

In the world of metal procurement and large-scale fabrication, few specifications are as common—or as consequential—as the choice between 5052-H32 and 6061-T6 aluminum.

On the surface, they appear to be interchangeable cousins: lightweight, corrosion-resistant, and versatile. This assumption, however, is a frequent and costly error for manufacturing professionals.

Specifying one where the other is required is not a minor detail; it is a blueprint for manufacturing failure, compromised structural integrity, and significant impacts on your project’s bottom line.

This guide moves beyond basic datasheets to provide a definitive, business-focused verdict, ensuring your next production run is built on a foundation of sound material science and manufacturing practicality.

30-Second Decision Guide: Which Aluminum to Specify for Your Project?

For procurement managers and production engineers, time is a critical resource. This straightforward decision flow helps you select the correct aluminum alloy—5052 or 6061—quickly and confidently.

Step 1: What is the primary manufacturing process?

If your part requires significant bending, forming, stamping, or welding (think sheet metal enclosures, boat hulls, or tanks), your specification should be 5052-H32.

Its superior formability and as-welded strength are crucial for these applications, ensuring low scrap rates and reliable joints.

If your part is primarily created through machining (milling, turning, drilling from a solid block or plate), your specification should be 6061-T6.

Its hardness, strength, and excellent chip formation are essential for efficient, high-precision machining with less tool wear.

Step 2: What is the end-use environment?

If the component will be consistently exposed to saltwater or harsh marine environments, strongly consider 5052-H32.

It is a true marine-grade aluminum, offering superior long-term resistance to saltwater corrosion—an area where 6061 can underperform without secondary coatings.

If the environment is general-purpose and not subject to salt spray, base your decision on the manufacturing method identified in Step 1.

This quick guide provides a strong starting point. For critical projects where nuance and risk mitigation are essential, the rest of this article explores the material science and shop-floor realities that support these recommendations—empowering you to make the most profitable, informed decision.

The Engineer’s Dilemma: The Hidden Costs of a “Simple” Material Choice

Choosing the wrong aluminum alloy is a classic misstep that can cascade into costly complications. The issue isn’t about which alloy is “better,” but about the high impact of mismatch between a material’s behavior and project needs.

Consider these two real-world scenarios where the wrong choice caused avoidable problems.

Part A: A Complex Electronics Enclosure

The design calls for a lightweight box with multiple 90-degree bends and welded seams. An engineer specifies 6061-T6 for its high strength.

The outcome is a production challenge. During forming, 6061-T6 cracks at the bends, resulting in excessive scrap.

In welding, the T6 temper is destroyed by heat, slashing the alloy’s strength by nearly 50%. The finished enclosure is weak, may crack further, and fails quality checks.

Part B: A Structural Mounting Bracket

This component starts as a solid block and must be CNC machined to tight tolerances. An engineer chooses 5052-H32 to save on material cost.

On the shop floor, the machinist encounters problems. The softer alloy creates “gummy” chips that stick to tools, degrade surface finish, and slow the process.

The final part is far more expensive to produce than if 6061-T6 had been specified—despite the lower raw material cost.

These examples highlight a key truth: the best aluminum is the one whose properties match your process and environment. Understanding this alignment is the core of successful, cost-effective manufacturing.

Under the Microscope: The Metallurgy That Defines Everything

To understand why 5052-H32 and 6061-T6 behave so differently, we must explore their metallurgical foundations. Their distinct performance stems from how they gain strength and what elements they incorporate.

5052’s Strength Secret: Solid Solution & Strain Hardening

5052 belongs to the 5xxx series, with magnesium (Mg) as the primary alloying element. It is non-heat-treatable, and its strength comes from two main mechanisms:

• Solid solution strengthening: Magnesium atoms distort the aluminum lattice, blocking dislocation motion and increasing strength.
• Strain hardening (work hardening): The alloy is cold-worked, entangling dislocations and raising strength and hardness.

6061’s Strength Secret: Precipitation Hardening (Heat Treatment)

6061 is a heat-treatable 6xxx series alloy with magnesium and silicon. Its strength derives from:

• Precipitation hardening (age hardening): Heat treatment forms fine magnesium silicide particles (Mg₂Si) that impede dislocations, improving hardness and strength.

What “-H32” and “-T6” Mean (And Why It Matters)

Temper designations describe the alloy’s final condition.

• 5052-H32: Strain-hardened and stabilized. The “H3” denotes this process; the “2” indicates quarter-hard. It retains properties after welding.
• 6061-T6: Solution heat-treated and artificially aged. Any subsequent heat (like welding) ruins the T6 condition, reducing strength.

The Manufacturing Gauntlet: Which Alloy Survives?

Datasheets don’t tell the whole story—real manufacturing performance does. Here’s how these alloys compare across fabrication processes.

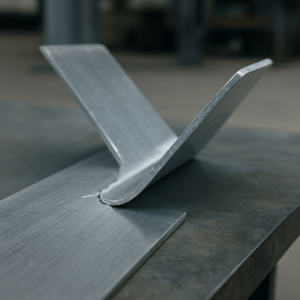

The Bend Test: Formability

• 5052-H32 wins. Excellent ductility, low yield strength, and toughness allow for tight-radius bends without cracking.
• 6061-T6 loses. High strength leads to brittleness. Sharp bends often cause fractures. Complex forming requires soft temper + costly post-heat treatment.

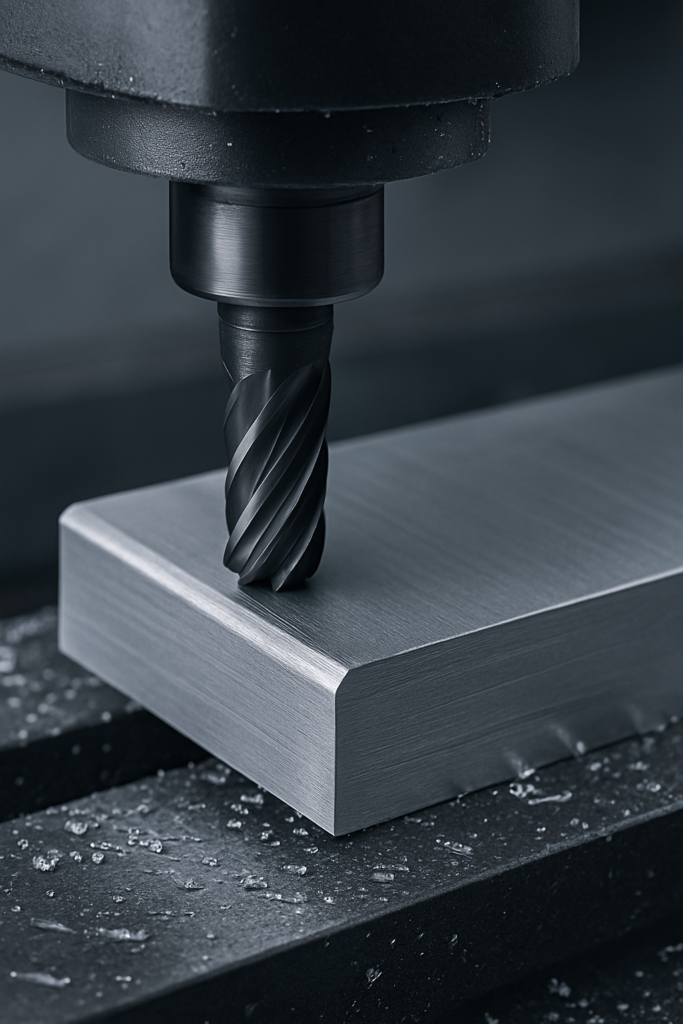

The Machining Test: Machinability

• 6061-T6 wins. Higher hardness results in crisp chips, minimal tool wear, and efficient machining.
• 5052-H32 loses. Its softness creates long, sticky chips. More tool wear, slower speeds, and extra care are needed.

The Welding Test: Weldability & HAZ Behavior

• 5052-H32 excels. Welds retain most strength. Solid solution structure resists cracking.
• 6061-T6 is risky. Welding ruins its strength. HAZ becomes 40–50% weaker. Recovery requires expensive PWHT—often impractical.

The Bottom Line: A True Cost Analysis

Effective engineering choices go beyond price per pound. True value is in total manufactured cost.

Total Manufactured Cost

• Machined parts: 6061-T6 is more cost-effective despite higher material cost—thanks to faster machining and longer tool life.
• Formed/welded parts: 5052-H32 is the better value. High yield, fewer defects, and no need for secondary heat treatment.

Marine Use: Life Cycle Cost Advantage

5052-H32 offers unmatched corrosion resistance in saltwater. Minimal maintenance over decades lowers total ownership cost. Ideal for marine structures, docks, and boat hulls.

The Ultimate Cheat Sheet & Engineer’s FAQ

Final Verdict Table

FAQ Highlights

• Can I bend 6061-T6? Yes, with a large bend radius. Risk of cracking is high. 5052 is better for sharp bends.
• 6061-T6 specified for bending—what now? Discuss with engineering. Recommend switching to 5052. Otherwise, anneal and re-heat treat.
• Is 5052 bad to machine? Not ideal—sticky chips, slower speeds. Doable but less efficient than 6061.
• How much strength does 6061 lose when welded? Up to 50% in the HAZ. Use reduced strength values for structural calculations.
• Which anodizes better? Both work, but 6061 produces more uniform appearance. Preferred for decorative applications.
