The 70% Cost Dilemma – Why Your Design Is a Ticking Time Bomb for Your Supply Chain
In the high-stakes world of global supply chains, a single statistic dictates profitability: over 70% of a product’s manufacturing cost is locked in during the design phase.
Once a design is finalized, opportunities for significant cost reduction are minimal. This makes the design itself a ticking time bomb—where even minor choices can lead to budget overruns, production delays, and costly supply chain friction.
For procurement managers, these are not just engineering concerns; they are critical business risks that impact lead times, inventory accuracy, and the total cost of ownership.
This article is your blueprint for controlling production cost and risk in precision sheet metal fabrication—specifically for CNC punch press operations. It reveals how advanced DFM (Design for Manufacturing) knowledge unlocks better pricing, shorter lead times, and stronger supplier collaboration in every batch.
Mastering the Unbreakable Rules of Punching Physics: The Foundation of Quality and Reliability
For procurement professionals, the consistency and reliability of each part delivered are paramount. These outcomes aren’t born from post-production inspection—they’re engineered into the part from the very beginning by applying the core physics of metal shearing.

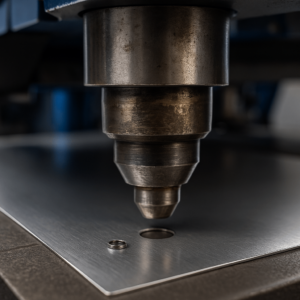

Every punch press action is a localized, high-force event. Designing features without considering these physical realities leads to predictable failures—production halts, inconsistent quality, and missed deadlines—none of which any buyer can afford.

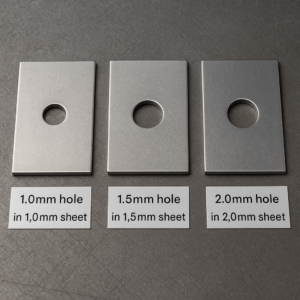

The 1T Rule Isn’t a Rule—It’s a Starting Point for Predictable Production
Among all sheet metal punching fundamentals, the “1T Rule” is foundational. It states that the minimum hole diameter should be at least equal to the material’s thickness (T).
This guideline is rooted in physics. A punch smaller than the material thickness faces increased risk of tool failure. From a supply chain lens, such a failure means a sudden and unscheduled production stop that could derail an entire delivery batch.
Additionally, breaking the rule can lead to “slug-pulling,” where the punched-out slug sticks to the tool and damages the workpiece mid-production.
However, interpreting this rule as absolute is a common design oversight. For ductile materials like mild steel, 1T is a solid baseline. But harder materials—such as stainless steel—demand higher ratios of 1.5T to 2T to ensure tooling durability and process stability. A supplier experienced in OEM punch press fabrication—like YISHANG—understands these nuances to protect your production schedule.

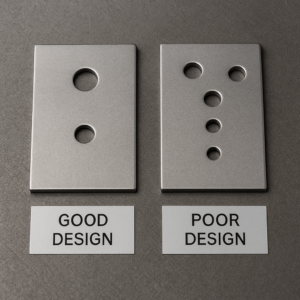

The “Zone of Influence”: Why Spacing Is a Non-Negotiable Red Line for Part Integrity
Every punch affects more than the area it contacts—it creates a stress zone around it. Ignoring these stress fields by placing features too close together causes distortion, which can render batches unfit for assembly.
- Hole-to-Edge: Maintain at least 1.5T to 2T distance to prevent fastener joint failure.
- Hole-to-Hole: Keep ≥2T spacing to preserve structural integrity; use 6T in high-stress applications.
- Hole-to-Bend (Most Common Violation): A hole placed within the bend zone becomes an unusable oval. Automated assembly fails, and manual rework—or full part rejection—follows.
Use the following equation to avoid this: Distance ≥ (2.5 × T) + R, where T is material thickness and R is the inside bend radius. Slots require even more clearance—4T + R.
DFM Quick Reference Table
Use the chart below to prevent common punching failures and ensure consistent quality across runs:
| Rule Category | DFM Guideline | Recommended Value (in terms of Thickness T and Radius R) | Business Impact of Violation |
|---|---|---|---|
| Holes | Minimum Hole Diameter | ≥ 1T (Mild Steel, Aluminum)≥ 1.5T – 2T (Stainless/High-Strength Steel) | Production stoppages due to tool failure, inconsistent hole quality, increased scrap rates. |
| Spacing | Hole Edge to Part Edge | ≥ 1.5T (2T recommended) | Compromised structural integrity, potential for joint failure in final assembly. |
| Hole Edge to Hole Edge | ≥ 2T (6T recommended for stability) | Part weakness, deformation during punching, leading to higher scrap. | |
| Hole Edge to Bend Line | ≥ (2.5 × T) + R | Deformed holes that fail quality control and prevent automated assembly, requiring costly rework. | |
| Slot Edge to Bend Line | ≥ (4 × T) + R | High risk of part distortion, leading to significant scrap and production delays. | |
| Features | Minimum Notch/Tab Width | ≥ 1.5T | Features breaking during handling or shipping, causing yield loss before assembly. |
| Maximum Notch/Tab Length | ≤ 5 × Width | Features bending or breaking under operational stress, leading to product failure. | |
| Minimum Internal Corner Radius | ≥ 0.5T (1T recommended) | Stress concentration leading to cracking and reduced product lifespan. |
3 DFM Decisions That Control 50% of Sheet Metal Cost
While physics governs quality outcomes, just a few design decisions wield disproportionate control over part cost. For buyers, mastering these levers is the key to negotiating effectively and spotting cost-saving opportunities in precision sheet metal manufacturing.
Lever 1: The Tooling Library – Your Single Biggest Opportunity for Cost and Lead Time Reduction
Designing around your fabricator’s standard punch tooling library is the fastest way to reduce cost and shorten lead time.
When your design requires a non-standard cutout, it demands custom tooling—introducing upfront costs and procurement delays that ripple through your project.
Avoid this risk early. Ask for your supplier’s punch tooling library during the design phase. This insight aligns your design with what’s readily manufacturable—eliminating tooling cost, streamlining production, and improving schedule predictability.
Lever 2: The Tolerance Tightrope – The High Price of Unnecessary Precision
Precision is vital—but too much can cripple your budget. Overly tight tolerances (beyond what’s functionally needed) can inflate production costs by 30–50%.
Why? Because tighter specs demand:
- Slower cycle times
- Advanced inspection tools (like CMMs)
- Higher scrap due to narrow margins
- Expensive secondary ops, like reaming
Remember: standard CNC punching can achieve ±0.004 inches (±0.13mm). The best DFM practice is tolerance zoning—assign tight specs only where truly necessary for function.
Lever 3: Material Strategy – More Than Just Nesting
Material usage directly affects your part cost—but there’s more than just smart nesting.
For high-volume projects, design to fit common sheet sizes (like 4×8 or 5×10 ft) to minimize waste and take advantage of bulk stock.
For lower volumes, simplify your assembly by choosing a single material thickness—even if some parts don’t structurally require it. Though raw material cost may rise slightly, you’ll save big in processing time, logistics, and part handling.
CNC Punch Press vs. Laser Cutting: DFM Comparison Guide
Selecting between punch and laser isn’t just technical—it’s strategic. It can make or break your scalability plan, cost forecast, and lead time targets.
Design for the Punch Press for High-Volume and Integrated Features
Punch presses thrive on speed—up to 1,000 hits/min. For high-volume runs of standard shapes (holes, slots), it’s the go-to.
It can also form 3D features like louvers and countersinks in-line—saving you a secondary process and simplifying logistics.
Since it’s a cold process, it’s ideal for painted or coated materials.
Design for the Laser Cutter for Prototyping and Complex Geometries
Lasers excel at precision and flexibility. No custom tooling needed—ideal for prototypes or short runs.
They cut any 2D shape with a smooth edge, often eliminating post-processing. Complex contours that would slow down a punch can be done in one pass.
The “Design for Scale” Playbook & Decision Matrix
Start with laser for prototyping flexibility. Transition to punch for volume cost savings. This hybrid approach maximizes both agility and efficiency.
| Criteria | CNC Punch Press | CNC Laser Cutter |
|---|---|---|
| Optimal Production Volume | Medium to High Volume | Prototype to Low/Medium Volume |
| Geometric Complexity | Best for parts with standard holes, slots, and radii. | Excellent for highly complex, intricate, and non-standard 2D contours. |
| 3D Forming Capability | Yes. Can create embosses, louvers, countersinks, etc. in-process. | No. Limited to 2D cutting. |
| Tooling Cost | Requires standard or custom tools. Custom tools have high upfront cost. | Zero part-specific tooling costs. |
| Per-Part Cost (High Volume) | Lower. Extremely high speed for repetitive features. | Higher. Slower cycle time for hole-intensive parts. |
| Edge Quality | Good, but may require a secondary deburring step. | Excellent. Produces a smooth, clean edge. |
Designing for a Flawless Assembly, Not Just a Perfect Part: A System-Wide View
True DFM looks beyond the part. Your component must work within a system. Adopting a Design for Assembly (DFA) mindset avoids downstream errors and simplifies your overall cost structure.
The “Almost Symmetrical” Trap: The #1 Cause of Assembly Headaches
Parts that are nearly symmetrical are a recipe for assembly errors. Operators may install them backwards, and you won’t catch it until final QA—or worse, when customers complain.
Avoid this by intentionally designing a clear asymmetry (poka-yoke). It makes orientation foolproof, protects your batch quality, and keeps your warranty claims low.
The Power of Consolidation: Reducing Part Count, Complexity, and Cost
Sheet metal’s versatility allows engineers to replace multiple brackets with a single formed piece.
This results in:
- Lower labor and handling costs
- Stronger assemblies (no welds or screws)
- Simplified procurement and inventory (fewer SKUs)
Your Fabricator Is Your Most Powerful DFM Tool: Building a Partnership for Success
The best DFM tool isn’t software—it’s collaboration. Don’t just hand off designs. Treat your fabricator as a co-engineering partner.
A high quote is often a red flag for manufacturability—not price gouging. Engage with your supplier to uncover the true cost drivers.
Ask questions like:
- Can we access your tooling library?
- What tolerances are standard on your punch machines?
- Which part features drive cost most?
- For our volume, should we use punch or laser?
- Are there parts we can consolidate?
Early collaboration = faster launches, fewer errors, and better ROI.
Ready to eliminate costly errors before they happen? Contact YISHANG—an OEM punch press fabrication partner—to start your DFM conversation.
Frequently Asked Questions (FAQ)
Q1: What is the 1T Rule in CNC punch press fabrication?
A: The 1T Rule means the minimum hole diameter should be at least equal to the material thickness. For harder materials like stainless steel, 1.5T to 2T is recommended to avoid tool breakage and ensure consistency.
Q2: When should I choose punch press over laser cutting?
A: Use punch press for medium to high-volume production with standard shapes and forming features. Use laser cutting for prototypes, complex geometries, or when flexibility and edge finish are top priorities.
Q3: How can I reduce tooling costs in sheet metal fabrication?
A: Design around your fabricator’s standard tooling library. Avoid custom-shaped cutouts that require specialized punch tools, which increase both cost and lead time.
Q4: What tolerances are realistic for CNC punching?
A: Standard CNC punching holds ±0.004 inches (±0.13 mm). Tighter tolerances increase inspection and processing costs and should only be used when functionally necessary.
Q5: Can punch presses create 3D features like louvers or embosses?
A: Yes. CNC punch presses can integrate features like louvers, countersinks, and embosses directly during the punching cycle, eliminating secondary processing.
Q6: What should I ask my fabricator during the design phase?
A: Ask about tooling availability, standard tolerances, cost-driving features, recommended process (punch vs. laser), and opportunities to consolidate parts.
