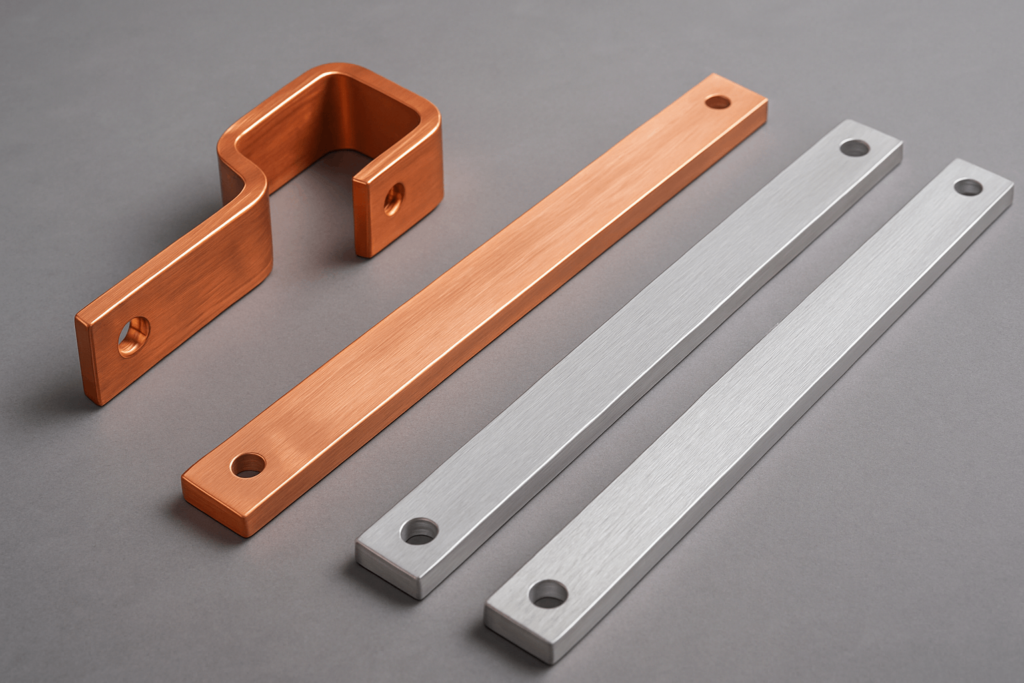

In the complex world of global power distribution, choosing the right busbar material—copper or aluminum—is a critical decision for B2B buyers and system designers alike. Each option impacts capital investment, logistics, compliance, and long-term reliability across diverse applications.
This guide moves beyond technical specs. It provides an actionable procurement framework tailored to international sourcing professionals, highlighting the five key decision drivers that define material suitability for OEM and custom busbar manufacturing.
Executive Summary: A 60-Second Comparison for Decision-Makers
For busy professionals navigating bulk procurement or product sourcing decisions, this busbar selection guide offers an immediate snapshot of trade-offs. It bridges performance metrics with real-world procurement implications.
| Decision Metric | Copper (C11000/ETP) | Aluminum (6101-T6) | The Verdict & Why It Matters for Procurement |
|---|---|---|---|
| Electrical Conductivity (Space Efficiency) | Winner | Copper’s superior conductivity allows for smaller components, a critical factor in space-constrained designs where footprint directly impacts overall system cost and feasibility. | |
| Weight-to-Conductivity Ratio (Logistics & Handling) | Winner | On a pound-for-pound basis, aluminum is more conductive. This translates to lower shipping weights and easier, faster installation, reducing labor costs and logistical complexity. | |
| Initial Cost (Capital Expenditure) | Winner | Aluminum’s significantly lower raw material price provides immediate and substantial savings on upfront capital investment, a primary driver for large-scale projects. | |
| Long-Term Reliability (Risk Mitigation) | Winner | Copper’s inherent resistance to creep and stress relaxation minimizes the risk of joint failure over time, reducing potential maintenance liabilities and ensuring operational continuity. | |
| Total Lifecycle Cost (Overall Economics) | Application Dependent | Application Dependent | The busbar cost comparison is nuanced. Aluminum’s CAPEX advantage can be offset by copper’s long-term energy efficiency and lower maintenance needs, making a full total cost of ownership (TCO) analysis essential. |
Core Engineering Trade-Offs: A Buyer’s Guide to the Five Deep Dives
For wholesale buyers and electrical engineers responsible for project budgeting and product specification, these five trade-offs link material choice to system-level outcomes and lifecycle cost.

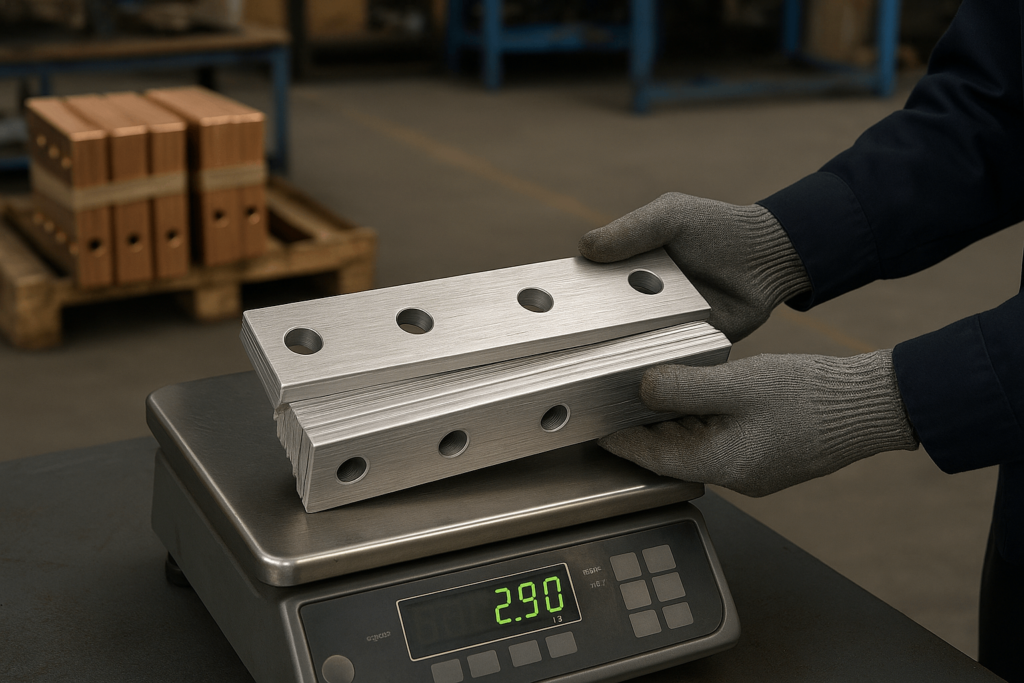

2.1 The Space vs. Weight Battle: A Logistics Perspective
Design constraints—space or weight—often shape initial sourcing decisions. Copper, with high conductivity by volume, enables compact system layouts and tighter enclosure footprints.
Aluminum, on the other hand, shines in logistics-heavy applications. Though it requires larger cross-sections for equal current, it remains up to 70% lighter. This difference drives savings across shipping, handling, installation time, and structural reinforcement.
2.2 The Strength vs. Formability Dilemma: Balancing Durability and Design Freedom
Busbars must withstand electromechanical stresses, particularly during short-circuit conditions. Copper offers high tensile strength (200–400 MPa), making it ideal for applications requiring robustness through transport and assembly.
Aluminum’s formability allows for easier fabrication of complex geometries, offering greater freedom for enclosure integration or high-density layouts. At YISHANG, our deep experience with both metals allows OEM buyers to customize geometry without compromising throughput.
2.3 The Heat Dissipation vs. Expansion Challenge: Managing Long-Term Risk
Thermal performance impacts current rating, safety margins, and long-term integrity. Copper dissipates heat more efficiently, maintaining stable temperatures even in high-load conditions.
Aluminum’s higher coefficient of thermal expansion (CTE) means it expands and contracts more during operation, increasing stress on bolted joints. Buyers should specify appropriate mechanical compensation—such as spring washers—to counteract fatigue over time.

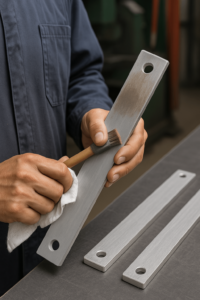

2.4 The Oxide Layer vs. Connection Reliability Challenge: A Mark of Quality
Connection surfaces are critical to system stability. Copper’s soft, conductive oxide enables consistent performance over time. Aluminum’s oxide is hard and non-conductive, requiring surface treatment and inhibitor application.
For buyers sourcing from OEM or ODM manufacturers, this difference is a marker of engineering competence. Fabricators must implement surface prep, anti-oxidation pastes, and quality control protocols to ensure field reliability.
2.5 The Initial Investment vs. Operational Cost (TCO) Puzzle
While aluminum offers clear advantages in CAPEX, copper reduces OPEX through lower resistive losses. Over a 10–15 year lifecycle, these losses—expressed as I²R—can significantly alter ROI models.
Copper also retains higher salvage value, which benefits long-term asset depreciation calculations. For energy-intensive industries or uptime-critical applications, buyers must evaluate long-run cost impacts holistically.
The Hidden Killers: Mitigating Risk in Busbar Connections
Procurement strategies must go beyond material specs to address system weak points. In busbar systems, joints and terminations often become failure points without proper design foresight.

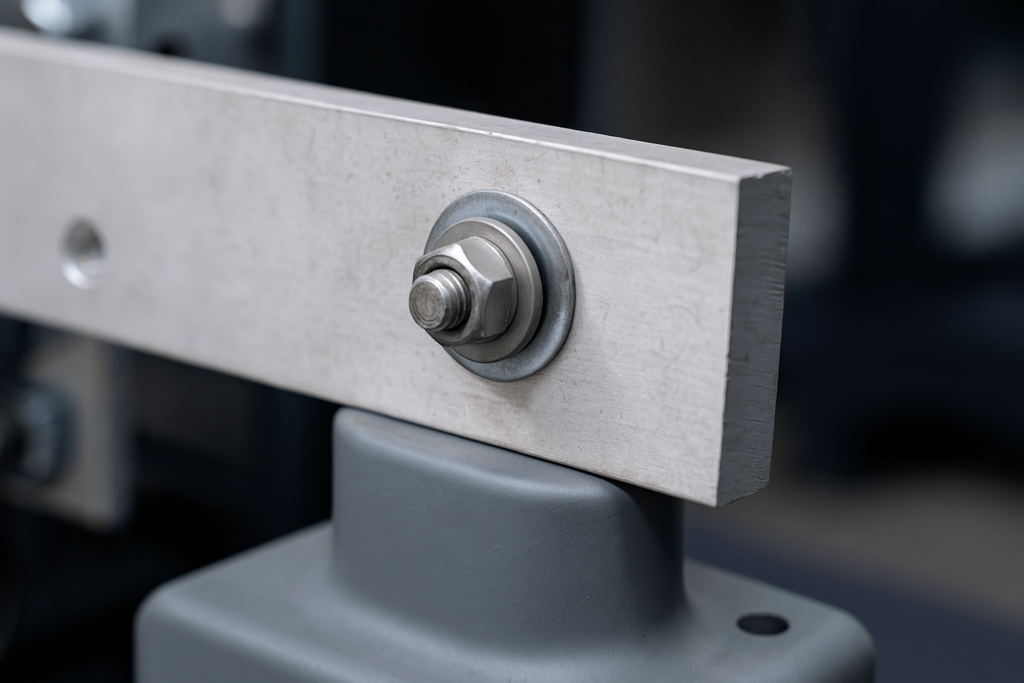

3.1 Creep and Stress Relaxation: The Silent Threat to Joint Integrity
Creep—especially in aluminum—can loosen bolted joints over time. As force relaxes, resistance increases, heat builds, and further deformation occurs.
Procurement teams should specify connection hardware with built-in compensation. Belleville washers, torque retention hardware, and post-installation torque audits are all part of long-term reliability assurance.

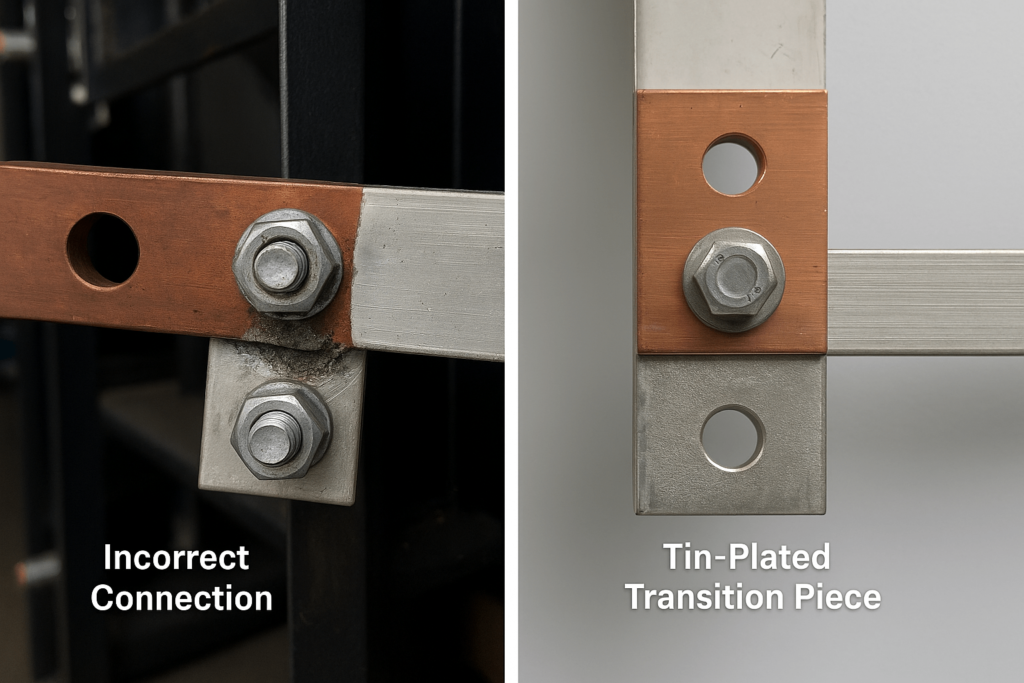

3.2 Galvanic Corrosion: The Bimetallic Challenge
Contact between dissimilar metals like copper and aluminum can accelerate corrosion under moisture. Galvanic action degrades the aluminum, increasing joint resistance and risking total failure.
Proven mitigation includes tin or silver plating, non-conductive separators, and metallurgically bonded bimetallic lugs. Buyers must confirm such techniques are part of their supplier’s standard assembly practices.
3.3 The Engineer’s Toolkit: Specifying for Reliability
Proactive sourcing teams use these components to ensure performance under real-world conditions:
- Belleville Washers: Maintain spring tension across thermal cycles and prevent joint loosening.
- Proper Plating: Tin-plated connections prevent oxidation and ensure long-term contact integrity.
- Bimetallic Transition Lugs: Required for copper-aluminum interface areas to avoid galvanic degradation.
The Real-World Verdict: Application-Driven Procurement Decisions
Material choice depends on function, risk tolerance, and regulatory context. Below are scenarios that drive clear material preferences in global procurement.
4.1 Data Centers: Prioritizing Uptime and Efficiency
Uptime and power efficiency (PUE) dominate data center busbar priorities. Copper’s conductivity ensures minimal losses and superior joint reliability, aligning with Tier III/IV Uptime Institute standards.
B2B buyers in this sector justify copper’s higher cost by modeling lifecycle energy use and downtime risk. Procurement teams focused on performance-to-cost ratios often favor copper for critical power paths.

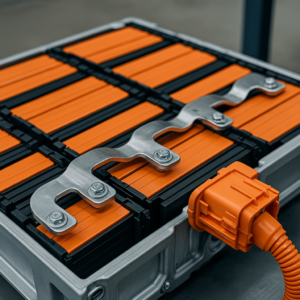

4.2 Electric Vehicles (EV) & Battery Packs: Driven by Weight and Manufacturability
Weight-sensitive sectors like EV manufacturing prefer aluminum for busbars in battery modules and drive systems. Its favorable weight-to-conductivity ratio helps maximize range.
Manufacturing partners must provide precision forming and welding, especially for high-voltage safety. YISHANG supports this with scalable CNC machining and laser joining capabilities.
4.3 Industrial Switchgear: A Balance of Cost and Compliance
This sector sees mixed usage based on form factor and standard compliance. Compact control panels often require copper to meet UL 508A or IEC 61439 thermal rise specs.
Larger assemblies—such as LV busways—can use aluminum with proper derating and engineering design. Buyers should validate that testing and certification protocols match international expectations.
Engineer’s Practical Toolkit & FAQ
To support sourcing and specification, this section compiles field-tested benchmarks and procurement-centric insights.
5.1 Quick Sizing Rules of Thumb
Use these estimates for initial current-carrying capacity:
- Copper: 1.2–1.7 A/mm²
- Aluminum: ~0.8 A/mm²
Adjust sizing based on ambient temperature, enclosure type, and duty cycle. For high-power applications, detailed thermal modeling is advised.
5.2 Key Standards Explained
Compliance expectations vary globally. Reference these for RFQs or factory audits:
- IEC 61439: Assembly verification for low-voltage switchgear.
- UL 508A & UL 857: U.S. construction, wiring, and thermal guidelines.
- ASTM B317: Material requirements for 6101 aluminum conductors.
Buyers should request compliance certificates with lot traceability.
5.3 Frequently Asked Questions (FAQ)
- What is the main difference in electrical conductivity? Copper conducts ~100% IACS vs. aluminum’s ~55–61%. This allows for more compact designs.
- Why would our project choose an aluminum busbar? When weight reduction or material savings dominate. Especially in EV, aerospace, or large-volume installations.
- In what situations are copper busbars the better investment? High-reliability or space-constrained systems, or where energy cost recovery justifies higher upfront cost.
At YISHANG, with over 26 years in custom metal fabrication and exports to 50+ countries, we deliver bulk OEM busbar solutions tailored to your application—whether copper or aluminum. From sourcing to packaging, we support full-cycle quality assurance under ISO 9001 and RoHS.
