Introduction: The YISHANG Standard for Quality in Metalwork
In professional metal fabrication, where component failure is not an option, quality is the ultimate standard. The clean, precise bead of a Gas Tungsten Arc Weld (GTAW), commonly known as TIG weld, is the visual signature of this commitment.
This iconic “stack of dimes” appearance represents a metallurgical bond with superior strength and purity, achieved through precise amperage and arc length control.
For procurement managers and engineers, understanding what drives a perfect TIG weld is crucial to evaluating a supplier’s ability to deliver consistently high-quality results.
This guide provides a transparent look into the science and craftsmanship behind professional TIG welding. As a result, it offers insight into the methods that ensure our components align with global performance expectations.
Chapter 1: Core Principles of TIG (GTAW) Welding
To appreciate the quality TIG welding delivers, one must first understand the science that governs its operation. This chapter explains the fundamental TIG welding principle and what makes GTAW a superior process for critical applications.

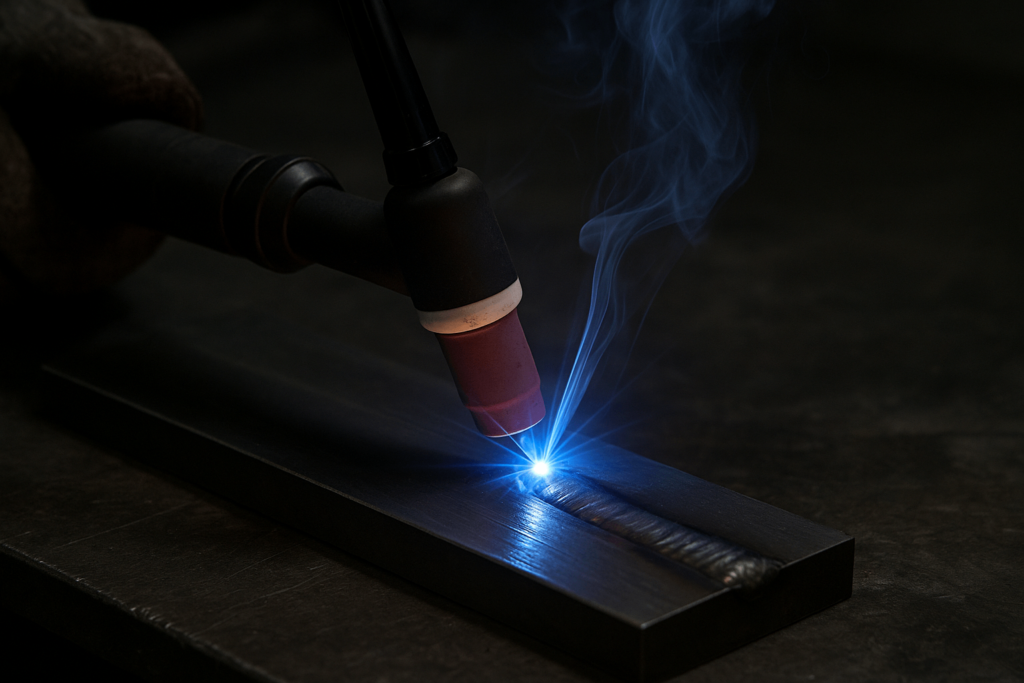

1.1 How It Works: The Arc, the Shield, and the Puddle
The TIG welding process generates intense heat by establishing an electric arc between a non-consumable tungsten electrode and the workpiece. Unlike soldering, which uses filler only, TIG welding fuses the base metals directly, resulting in a stronger and more reliable joint.
The process relies on three core components. First, the tungsten electrode, with its incredibly high melting point of 6,192°F (3,422°C), delivers a stable, controlled column of heat without being consumed.
Second, an inert shielding gas, typically pure argon, flows from the torch to protect the molten weld area from atmospheric contamination.
Finally, when required, the operator manually adds a separate filler rod to the weld puddle. In fact, this separation of heat and filler inputs is what gives TIG its unmatched precision.
1.2 The TIG Advantage: Precision, Quality, and Versatility
The mechanics of TIG welding offer a host of advantages essential to high-stakes manufacturing. Most importantly, it allows for precise control over heat input, travel speed, and filler addition.
This process is ideal for thin materials and intricate joints. As a result, the welds are clean, spatter-free, and typically require minimal finishing.
In addition, TIG is highly versatile—effective across a wide range of metals, from stainless steel to aluminum and titanium. For any welding assembly where joint integrity and cosmetic appearance are crucial, TIG offers unmatched quality.
1.3 Why a Small Heat-Affected Zone (HAZ) is Critical
Every welding process alters the base metal’s properties in a Heat-Affected Zone (HAZ). Unfortunately, this zone is often the most vulnerable area of a welded component.
TIG welding’s focused arc produces a minimal HAZ, which helps preserve the original strength, ductility, and corrosion resistance of the material.
Consequently, this minimizes distortion and thermal stress, ensuring dimensional accuracy—especially important in precision manufacturing and export-grade metal components.
Chapter 2: The TIG Welding Toolkit: A Breakdown of Essential Equipment
A successful TIG weld is the product of a finely tuned system. Therefore, understanding each piece of equipment is essential for achieving professional-grade results.
2.1 The Power Source: Polarity and the AC Imperative
The power source provides the stable electrical current for the arc. For steel and stainless steel, Direct Current Electrode Negative (DCEN) is the standard, as it concentrates heat on the workpiece for deep penetration.
However, as noted in Chapter 5.3 on aluminum welding, Alternating Current (AC) is required to break up the tough oxide layer. The AC cycle’s “cleaning action” removes this layer, while the penetration cycle melts the base metal.
In modern operations, inverter machines offer advanced control over this waveform. In addition, high-frequency (HF) arc starting initiates the arc without contact, which helps prevent tungsten contamination.
2.2 The TIG Torch: Anatomy and the Gas Lens Advantage
The TIG torch houses the tungsten electrode and delivers both current and shielding gas. It includes the torch body, a collet, and a ceramic cup.
For high-amperage jobs, water-cooled torches effectively manage heat. Furthermore, a gas lens upgrade improves shielding by creating a laminar gas flow.
This not only enhances arc stability and visibility, but also reduces gas consumption by up to 40%—a significant efficiency gain in production.
2.3 Shielding Gas and Filler Metals
Using the right shielding gas and filler metal is crucial for weld integrity. Typically, welders rely on 100% argon for consistent arc performance.
When filler is required, its composition must match the base material. For example, ER70S-2 is used for carbon steel, while ER4043 is preferred for aluminum. In addition, filler selection impacts strength, corrosion resistance, and ductility.
Chapter 3: The Tungsten Electrode: The Heart of the Process
The tungsten electrode directly affects arc quality. As a result, its composition, tip shape, and preparation are critical to successful TIG welding.
3.1 Choosing Your Tungsten: A Color-Coded Guide
The American Welding Society (AWS) classifies tungsten types using color codes. For instance, 2% Lanthanated (Blue) tungsten is a versatile choice for both AC and DC welding.
It offers excellent arc starting, high current capacity, and long life—making it ideal for most applications. In contrast, 2% Thoriated (Red) tungsten, though historically common, is slightly radioactive.

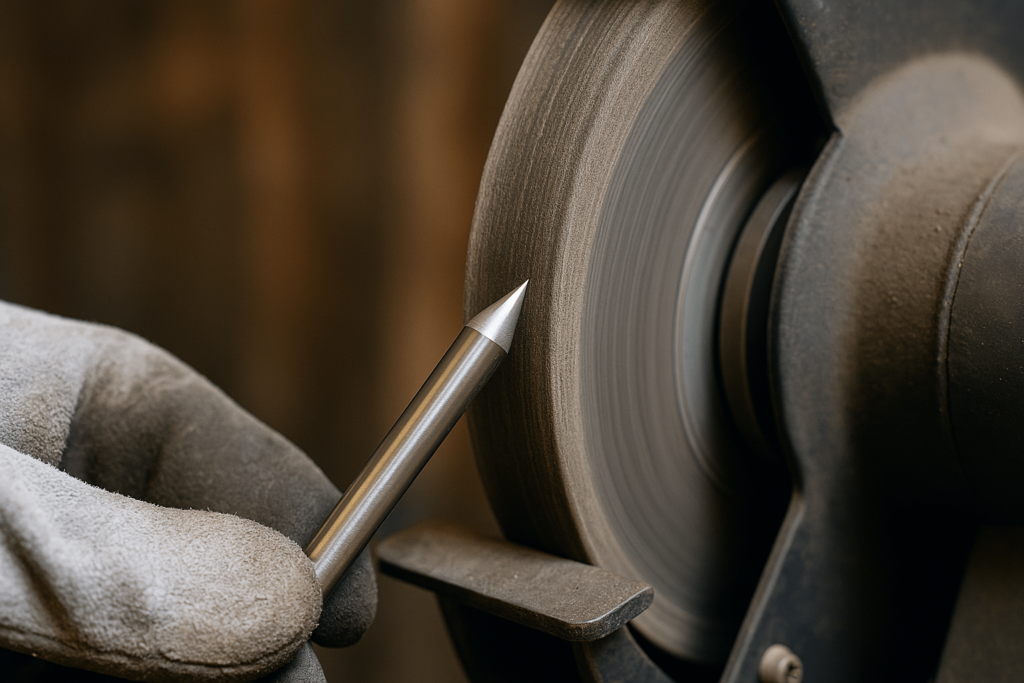

3.2 The Art of the Grind: Shaping the Arc
Tungsten tips must be ground longitudinally using a dedicated diamond wheel. Crosswise grinding causes arc instability and wander.
Furthermore, tip angle affects arc shape. A sharper grind (e.g., 25°) produces a wider arc, suitable for thin materials. Conversely, a blunter angle (e.g., 45°) delivers deeper penetration for thicker metals.
Chapter 4: Welding Technique — The Human Element
Even with high-end equipment, the welder’s technique plays a decisive role in TIG welding quality. Therefore, mastering torch positioning, arc length, and filler control is essential.
4.1 Arc Length and Travel Speed
Maintaining a short and consistent arc length—roughly equal to the tungsten diameter—ensures arc stability and heat control. If the arc is too long, the shielding gas coverage weakens; too short, and tungsten contamination becomes a risk.
Similarly, consistent travel speed is critical. Moving too slowly leads to overheating and excessive weld buildup. On the other hand, moving too quickly may result in undercutting or lack of fusion. Skilled operators adjust both in real time.
4.2 Torch Angle and Manipulation Techniques
The recommended torch angle is generally 10–15° from vertical, tilted in the direction of travel. In addition, steady hand control or walking-the-cup technique can greatly improve bead consistency depending on the application.
For example, walking the cup is ideal for pipe welding as it improves torch stability. Conversely, freehand methods offer more flexibility for tight access welds or complex joint geometries.
4.3 Filler Rod Control and Timing
Filler metal should be introduced into the front edge of the weld puddle to ensure full fusion. Adding filler too early chills the puddle, while adding it too late leads to incomplete bonding.
As a result, experienced TIG welders develop a consistent rhythm that coordinates filler addition with torch movement. This produces the signature “stack of dimes” ripple pattern, an indicator of professional craftsmanship.
Chapter 5: Matching Technique to Material — TIG Across Alloys
Each metal behaves differently under heat. Therefore, adjusting technique and settings based on material type is crucial for weld quality.
5.1 Carbon and Low-Alloy Steel
These are relatively easy to weld and tolerate minor inconsistencies. However, clean surfaces remain essential. DCEN polarity and filler like ER70S-2 offer reliable results.
TIG is often used when aesthetics or precise bead profile is important, such as on visible brackets, frames, or architectural metalwork.
5.2 Stainless Steel
Stainless steel has lower thermal conductivity, which increases its tendency to warp. Therefore, TIG is ideal because it provides low, controlled heat input.
Back-purging with argon is often required to protect the root side of the weld, especially in sanitary applications. Moreover, using filler metals like ER308L helps prevent carbide precipitation and corrosion degradation.
5.3 Aluminum and Magnesium
These metals require AC polarity due to their persistent oxide layers. The “cleaning” half-cycle of AC removes these oxides, while the other half enables penetration.
Fast travel speeds and wide arcs are typically used. Additionally, filler metal selection matters—ER4043 offers good flow and appearance, while ER5356 offers higher strength.
5.4 Specialty Alloys: Titanium, Inconel, and Beyond
These high-performance materials are sensitive to contamination and require exceptional shielding. Techniques include trailing shields, purged chambers, and ultra-clean environments.
At YISHANG, we apply industry-specific QA standards when working with such alloys, especially in aerospace, medical, and defense applications.
Chapter 6: Common Defects and Troubleshooting Techniques
Understanding and quickly correcting defects reduces scrap rates and ensures structural performance.
6.1 Recognizing TIG Welding Defects
| Defect | Cause | Solution |
|---|---|---|
| Porosity | Contaminated base/filler, poor shielding | Clean surfaces thoroughly, verify gas coverage |
| Lack of Fusion | Low heat or fast movement | Increase amperage, slow travel speed |
| Undercut | Excessive heat, poor angle | Reduce current, correct torch angle |
| Tungsten Inclusion | Electrode contacted puddle | Maintain correct arc length, use HF start |
| Cracking | Improper filler, rapid cooling | Preheat part, select compatible filler |
6.2 The Quality Assurance Process at YISHANG
To ensure every TIG weld meets export-grade requirements, YISHANG performs:
- Visual inspections for bead uniformity and surface finish
- Dimensional checks using calibrated tools
- Penetrant or radiographic testing (when required)
- Mechanical testing (bend, tensile) on sample batches
In addition, QA documentation (WPS/WPQ) is available for review by clients or third-party auditors.
Chapter 7: Safety Standards and Compliance Considerations
In TIG welding, safety measures not only protect operators but also enhance consistency and workplace efficiency.
7.1 PPE and Ventilation
Operators are equipped with:
- Auto-darkening helmets (Shade 10 or higher)
- Flame-resistant gloves and welding jackets
- Safety goggles under helmets
Fume extraction systems are installed at each welding station. This is especially critical when welding stainless steel, which may release hexavalent chromium.
7.2 Shielding Gas Handling
All shielding gases (argon, helium) are stored upright and secured. Regulators are checked daily, and lines purged before welding begins.
Leaks or contamination can compromise both weld integrity and worker safety. Therefore, preventive maintenance protocols are enforced daily.
7.3 Certifications and Industry Standards
YISHANG is ISO 9001 certified and aligns all TIG procedures with AWS D1.1 and ASME Section IX where applicable.
Every certified TIG welder on staff holds valid WPQ credentials. Documentation is available on request for client review or regulatory compliance.
Chapter 8: FAQs and Buyer Guidance
8.1 Can TIG welding be automated?
Yes. TIG welding can be automated using robotic arms or CNC systems for repetitive high-volume parts. YISHANG offers both manual TIG and robotic TIG solutions depending on project scope.
8.2 What’s the lead time for TIG-welded parts?
Standard prototypes: 7–10 working days. Production: 2–4 weeks depending on quantity, complexity, and surface finishing requirements.
8.3 How can I verify weld quality before placing a large order?
We recommend asking for:
- Welding Procedure Specifications (WPS)
- Welder Performance Qualifications (WPQ)
- QA reports from recent projects
- Sample photos or small-lot pre-production parts
Factory audits or third-party inspection visits are also supported.
Conclusion: Precision That Scales
TIG welding remains the benchmark for high-integrity, high-precision welding. For B2B buyers sourcing custom or export-grade metal components, it is often the clearest indicator of manufacturing quality.
At YISHANG, TIG welding represents more than a process—it reflects our commitment to craftsmanship, technical control, and long-term reliability.
Whether you’re ordering stainless steel enclosures or intricate aluminum frames, our certified welders and QA team ensure every piece meets expectations.
Ready to source export-quality TIG welded parts from a certified Chinese manufacturer? Contact YISHANG for a quote today.
