For engineers and procurement managers specifying high-performance materials, the question “What is the melting point of graphite?” is not a matter of simple trivia. It is a critical data point that directly impacts material selection, operational reliability, and cost-effectiveness in some of the world’s most demanding industrial applications.
The answer, however, is a fascinating paradox. Under standard atmospheric pressure, graphite does not have a true melting point. Instead of liquefying, graphite undergoes a physical transformation known as sublimation. When subjected to extreme temperatures—even in high heat industrial environments—it bypasses the liquid phase entirely, transitioning directly from a solid into a gaseous state.
This guide provides a definitive technical overview of graphite’s unique thermal behavior for industrial use. It explores the atomic principles that govern its performance, outlines the extreme conditions necessary to produce liquid carbon, and translates these properties into tangible advantages across key high-temperature applications.
The Central Paradox: Sublimation, Not Melting
To accurately specify graphite for any high-temperature application, it is essential to understand the distinction between melting and sublimation. Melting refers to the solid-to-liquid transition. Sublimation, conversely, is a direct solid-to-gas transition. For graphite, this is its default behavior under standard atmospheric pressure.
The temperature at which this occurs—the graphite sublimation point—is approximately 3,600°C (6,512°F). At this temperature, rather than forming a pool of liquid carbon, graphite transforms directly into a gas.
It is crucial for technical specifications to recognize that this is a physical change, not a chemical reaction such as combustion, which requires an oxidizing environment. This unique characteristic is foundational to graphite’s value and raises two key questions in materials science:
Why does graphite defy conventional melting? And under what specific, controllable conditions can it be induced to liquefy?
The Atomic Secret: Why Graphite Defies Melting
Graphite’s exceptional thermal stability is a direct and predictable result of its atomic structure. For procurement and engineering professionals, understanding this structure is essential to trust the material’s performance and forecast its behavior in application.
A Tale of Two Bonds: Covalent Strength vs. van der Waals Weakness
Graphite consists of countless, perfectly stacked layers of carbon atoms, with each individual layer forming a sheet of graphene. Within these sheets, carbon atoms are arranged in a hexagonal, honeycomb-like lattice.
Each carbon atom undergoes sp2 hybridization, forming three extremely strong covalent bonds with its neighbors. These bonds create one of the most robust two-dimensional networks known, giving graphite its exceptional in-plane strength, rigidity, and high tensile modulus.
In contrast, the forces binding these resilient graphene layers together are markedly weak. These layers are held only by subtle secondary attractions known as van der Waals forces. This contrast in bonding—formidable strength within layers and extreme weakness between them—defines graphite’s performance characteristics.
The Path of Least Resistance: An Engineering Perspective
As graphite is heated, thermal energy causes its atoms to vibrate more vigorously. From an engineering perspective, energy disperses along the path of least resistance. It is much easier for this energy to overcome the weak van der Waals forces and separate the layers than to break the powerful covalent bonds within them.
Severing these in-plane bonds is a prerequisite for entering a liquid phase. Therefore, under standard pressure, graphite reliably transitions to gas via layer separation—sublimation—rather than melting.
The Quest for Liquid Carbon: Engineering an Exotic State
While graphite does not melt under ordinary conditions, the formation of liquid carbon is achievable. This exotic state requires surpassing normal atmospheric conditions, entering the realm of extreme physics. The critical enabler is the application of immense pressure.
A Century of Scientific Challenge
For more than a century, the precise melting curve of carbon has been debated. This context is important for procurement managers evaluating historical references. Early experiments, dating back to the early 20th century, reported inconsistent melting points varying by thousands of degrees.
These inconsistencies stemmed not from lack of scientific rigor, but from technical limitations:
- The Soot Problem: At extreme temperatures, graphite rapidly sublimates, creating a dense cloud of carbon soot. This cloud obscures the sample and distorts thermal readings.
- The Pyrometry Problem: Early optical pyrometers were too slow to capture peak temperatures during fleeting high-heat events, leading to underestimates.
- The Emissivity Enigma: Accurate thermal measurement depends on knowing a material’s emissivity. For liquid carbon, this remains an uncertain value, creating inherent measurement ambiguity.
Modern consensus has emerged through advanced methods like Laser-Heated Diamond Anvil Cells (LH-DAC), in-situ X-ray diffraction, and sophisticated ab initio** molecular dynamics simulations**. This triangulated approach yields high-confidence data for use in engineered carbon materials.
Mapping the Extremes: The Carbon Phase Diagram
The carbon phase diagram defines its stable states. Two critical landmarks stand out:
- The Graphite-Liquid-Vapor Triple Point: The minimal condition under which liquid carbon exists, requiring ~10.1 MPa pressure and 4,500 to 4,800 K temperature.
- The Graphite-Diamond-Liquid Triple Point: A state where solid graphite, diamond, and liquid carbon coexist, occurring at 12–15 GPa pressure.
From Theory to the Forge: Industrial Imperatives for High-Temperature Performance
For industrial buyers, the practical implication is clear: graphite’s thermal behavior yields operational advantages. Its resistance to extreme heat is not isolated—it aligns with a package of properties uniquely suited to critical processes.
Graphite Electrodes for Electric Arc Furnaces (EAFs)
In steel recycling, graphite electrodes power Electric Arc Furnaces (EAFs). These electrodes conduct intense electrical currents to create arcs reaching 3,000°C—nearly double the melting point of steel.
Procurement decisions hinge on electrode durability and reliability. Graphite with low resistivity and high strength reduces erosion and breakage, resulting in longer service life and lower cost per ton of steel. These qualities make graphite the only commercially viable choice.
Crucibles, Molds, and Refractories
In metallurgy, preserving the purity of molten metal is paramount. Graphite’s chemical inertness and thermal shock resistance make it ideal for crucibles, molds, and furnace linings.
It withstands temperatures that degrade ceramic refractories, and its ability to tolerate rapid thermal cycling leads to longer service intervals and operational savings.

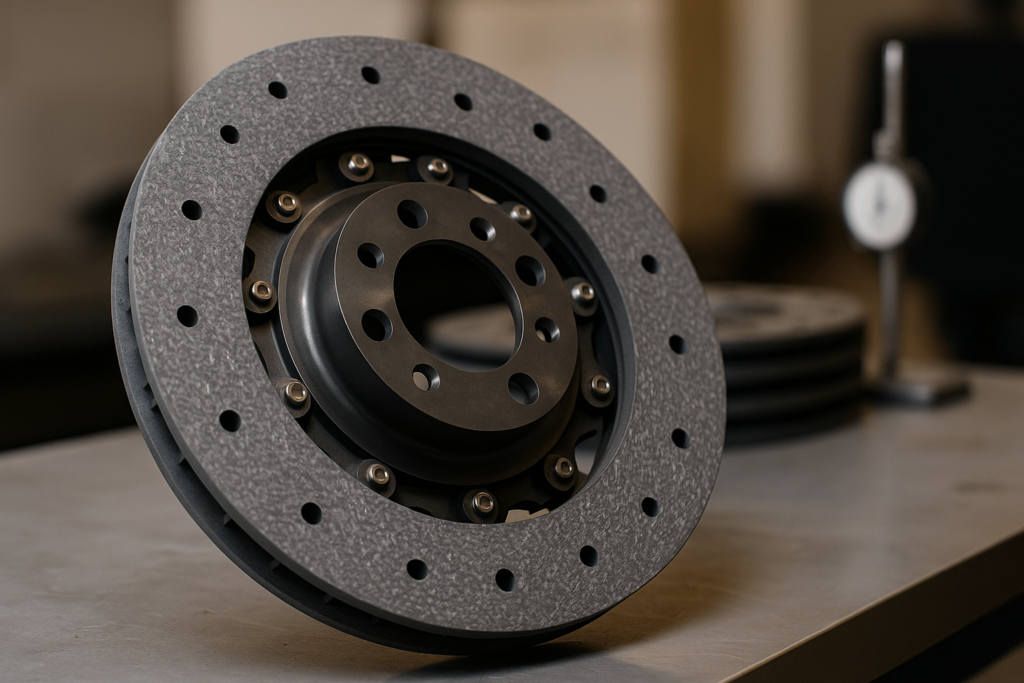

High-Performance Braking Systems
In critical applications like aircraft and Formula 1 braking systems, carbon-carbon (C/C) composites outperform metal brakes. Unlike steel brakes, C/C composites exhibit increased friction with temperature rise.
They serve as high-capacity heat absorbers, enduring brake temperatures over 1,300°C during emergency stops while maintaining structural integrity. This resilience derives from graphite’s inherent thermal stability.
Aerospace and Rocketry
Spaceflight demands extreme material performance. Graphite-based composites are used in solid rocket motor nozzles, where they resist the erosive blast of combustion gases.
Most notably, Reinforced Carbon-Carbon (RCC) was employed in the Space Shuttle’s nose cone and wing edges. These components endured reentry temperatures approaching 3,000°C, thanks to graphite’s thermal stability and low thermal expansion.
A High-Temperature Showdown: Graphite vs. Its Rivals
Material selection often involves trade-offs. Graphite stands out in direct comparison with other refractory options used in high heat environments.
Graphite vs. Tungsten
Tungsten melts at 3,422°C, but graphite sublimates at a slightly higher 3,600°C. More critically, graphite’s lower density and superior thermal shock resistance offer better performance in rapidly changing thermal environments, where tungsten’s brittleness is a liability.
Graphite vs. Diamond
Both are carbon allotropes. Diamond sublimates at ~3,800°C, slightly above graphite. Yet graphite’s machinability, conductivity, and lower cost make it more practical for most industrial uses, especially where engineered carbon materials are needed.
Strategic Summary for Procurement and Engineering
Understanding graphite’s melting point leads to deeper appreciation of its capabilities. Rather than a weakness, its sublimation behavior is a defining strength.
Key takeaways for high-temperature applications:
- Sublimation Defines Performance: Graphite sublimes at ~3,600°C, not melts—this predictability is crucial in industrial design.
- Liquid Carbon Is a Special Case: Achieving a liquid state demands extreme pressure, beyond most real-world needs.
- Atomic Structure Predicts Behavior: Its layered architecture underpins graphite’s high-temperature reliability.
- Competitive Edge: Compared to alternatives like tungsten, graphite delivers superior thermal and mechanical performance at a lower operational cost.
