Hydraulic power packs are widely used in lifting tables, construction equipment, factory automation, energy storage cabinets, and even compact vending or mobile systems. They are the compact source of hydraulic power in a machine. But for overseas wholesale buyers, the real problem is not understanding what a hydraulic power pack is — it is how to source one that will not create after-sales trouble. A power pack that looks fine in photos may start leaking after transport, may rust in six months, or may be hard to service on site. That becomes your problem, not the end user’s.
YISHANG looks at hydraulic power packs from the manufacturing side, especially from the metal enclosure and structural design angle. Because once the structure is done right — plate thickness, welding method, coating, mounting points, inspection reports — the hydraulic part can work stably for a long time. This article is written for B2B buyers, trading companies, integrators, and OEM brands that need repeat orders, clear documentation, and export-ready quality. It is also written in a way that matches how such buyers read: short sections, technical wording, and clear sourcing checkpoints.
Why Hydraulic Power Packs Fail in the Field
Many field failures of hydraulic power packs come from the enclosure and frame, not from the pump. If the baseplate is too thin, vibration from the motor and pump will slowly loosen the fittings. If the oil tank is welded without proper support, the tank wall may deform, creating stress on pipes. Once a small leak appears, pressure becomes unstable and the end user starts to complain about “the hydraulic system,” even though the hydraulic circuit itself is correct.
For wholesale buyers this is a commercial issue. A single batch with leaks or noise can lead to multiple replacements, higher shipping costs, and weaker trust from your local customers. That is why structure must be checked before you place a volume order. Ask for drawings that show plate thickness (2–3 mm for the load area is reasonable), stiffeners under the motor, and removable panels for service. A professional factory will include these in their technical file without you reminding them.
Heat is another reason power packs underperform. Every hydraulic system turns a part of the input energy into heat. If the power pack is in a closed box with no airflow, oil temperature will go up. Hot oil becomes thinner, seals age, and the unit needs maintenance earlier than planned. A well-designed hydraulic power pack enclosure will have louvered panels, fan-assisted cooling, or at least enough spacing between motor and tank so heat does not accumulate. When a supplier can explain their cooling logic, it shows they really understand hydraulic applications, not just metal boxes.
Structure First — Metal Design That Supports Hydraulic Performance
A hydraulic power pack is also a metal product. The enclosure, frame, doors, and mounting brackets are all made by cutting, bending, welding, and coating — the same processes as electrical enclosures, control cabinets, or telecom boxes. If these steps are done with precision, the hydraulic unit will be stable, easy to assemble, and able to reach protection levels like IP55 or IP65. If these steps are done roughly, you will see twisted doors, uneven gaps, and vibration during operation.

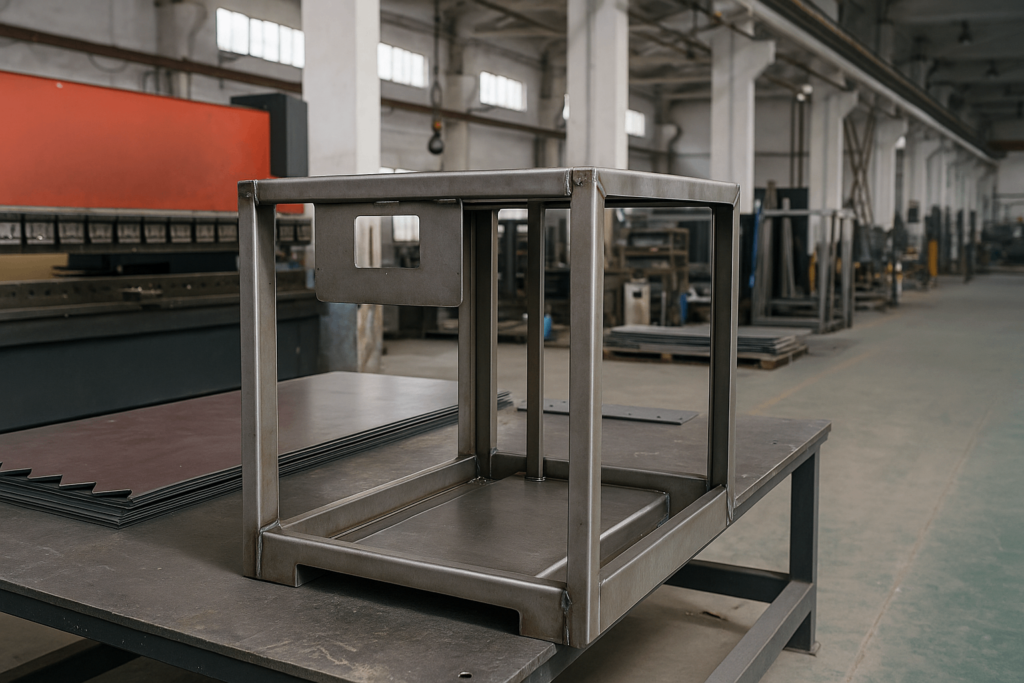

YISHANG uses laser cutting for accurate profiles, CNC bending for repeated dimensions, and TIG/MIG welding for strong joints. This is the same production flow used for NEMA 4/4X enclosures, outdoor electrical enclosures, solar battery enclosures, and stainless steel control boxes. Using one stable fabrication flow for hydraulic power pack enclosures means tolerance can be controlled within ±0.5 mm, which keeps the pump-motor alignment correct. For a buyer, this directly means fewer complaints about noise or coupling wear.
A strong frame should do four things: distribute the weight of motor, pump, and full oil tank; isolate vibration so pipes and manifolds do not shake; provide mounting points for filters, gauges, junction boxes, or push button enclosures; and keep doors flat so gaskets can seal. When you review a supplier’s 3D design, check for these elements. If the design has no reinforcement near the motor, no lifting eyes, and no service opening, it will cause problems later on the customer’s site. A good hydraulic power pack should look as complete and straight as a good electrical cabinet — clean layout, even gaps, logical mounting holes.
Material and Surface — Choosing the Right Enclosure for Each Market
Overseas buyers often sell to more than one industry, so one single material is not enough. Indoor automation systems can accept powder-coated carbon steel enclosures. Outdoor construction equipment needs galvanized steel enclosure or stainless steel enclosure. Marine and renewable energy customers will ask directly for 304/316 stainless steel. Mobile or energy-storage systems prefer aluminum enclosure because of its lower weight and better heat dissipation.

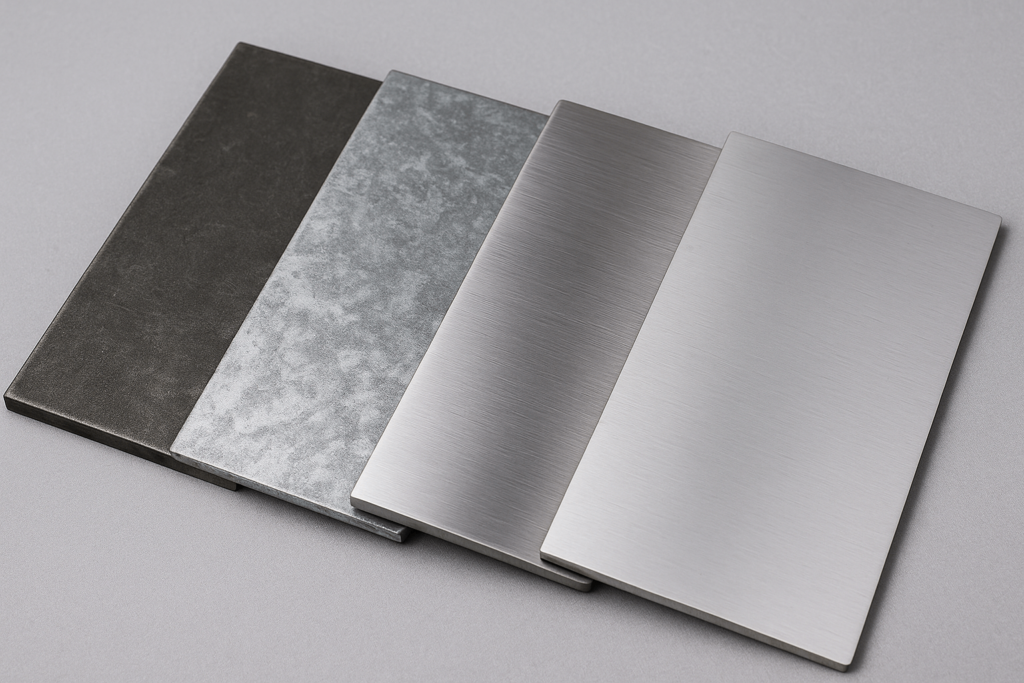

Below is a quick material view for buyers:
- Carbon steel enclosure: best for indoor factory equipment, presses, assembly machines. Strong and cost-effective. Must confirm powder coating thickness and adhesion.
- Galvanized steel enclosure: good for outdoor, construction, or agricultural machinery. Better corrosion resistance and still easy to weld.
- Stainless steel enclosure (304/316): for marine, chemical, offshore, renewable energy near the sea, or high-end OEM markets. Highest durability.
- Aluminum enclosure: for mobile hydraulic units, solar battery enclosure, EV charger enclosure, or any equipment where weight and cooling matter.
A real factory will provide material inspection certifications and coating test reports. Many professional buyers will upload these documents in their “resource / inspection report / technical drawing download” section. Your blog can tell them to request these files — this shows you know how export business is really done. It also increases trust in your brand because you are teaching real procurement steps, which is exactly what Google’s E-E-A-T is looking for.
Surface finishing must not be treated as decoration. For outdoor products, salt-spray resistance of 480 hours or more is a good sign. For powder coating, a thickness of around 80 μm with good edge coverage can protect welds and corners. Hot-dip galvanizing is suitable for harsh outdoor sites. When these data appear in your article, buyers know you are sharing actual factory standards, not generic marketing lines.

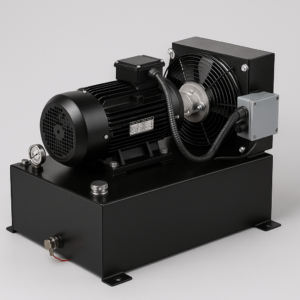

Functional Layout — Cooling, Maintenance, and Electrical Integration
A hydraulic power pack that is difficult to service creates after-sales cost for you and for your customer. That is why layout is part of good design. Filters, oil-level sight glasses, breathing valves, and test ports should face the operator side. Panels should open without removing the motor. Hoses should have enough bend radius to avoid cracking. All these details can be designed easily at the sheet-metal stage, and they do not increase cost if planned early.
Many modern systems combine hydraulic and electrical controls. That means the hydraulic enclosure must be able to mount an electrical meter box, a junction box NEMA 4/4X, a push button enclosure, or even a small PLC enclosure on the same frame. If the frame already has standardized hole patterns — wall mount, surface mount, pad mount — then the buyer or the end user can add these electrical parts locally. This makes one hydraulic platform serve several product lines, which is exactly what distributors want.
Cooling is worth explaining because many buyers search for “power pack maintenance,” “maximum pressure,” or “hydraulic system getting hot.” Tell them clearly: if the unit will run near maximum pressure or for long duty cycles, choose a bigger tank, add fan cooling, or separate the motor chamber from the oil chamber. You can also mention that aluminum or galvanized steel panels help heat dissipation. This kind of practical, instructional content performs well in search because it solves a real problem.
Industry-Based Adaptation — Let the Structure Follow the Application
Different industries care about different risks. Construction and lifting care about impact, outdoor exposure, and easy cleaning. Factory automation and automotive lines care about appearance, noise, and service access. Renewable energy and storage cabinets care about corrosion, space for batteries, and cable entry. When you write your hydraulic power pack article in this way — always tying the industry to enclosure choice — the content stays close to the topic and still covers many long-tail keywords.
Examples:
- Construction / lifting: choose galvanized steel or stainless steel enclosure, IP65 sealing, reinforced mounting, removable panels for mud and dust cleaning.
- Automation / automotive: choose carbon steel enclosure with smooth powder coating, noise-reduced layout, and space to mount control cabinet enclosure or distribution board enclosure.
- Energy / solar / storage: choose aluminum enclosure or stainless steel with climate-control options, space for solar battery enclosure, and proper cable entries.
This way, the buyer reading your blog can quickly map “my customer is using scissor lifts” → “I need outdoor-rated enclosure with better coating” without having to ask you again. At the same time, search engines see real use cases, real materials, and real protection levels like NEMA 4X, IP65, IP66 — which are all strong semantic signals.
Quality Control, Documentation, and What Buyers Should Request
Serious overseas buyers always look for documents: material inspection certification, drawing, technical drawing download, inspection report, packaging inspection report, and shipping FAQ. If your blog teaches them to ask for these when they purchase hydraulic power packs, they will feel you are on the same side. It also shows Google that your content is experience-based.
At minimum, a factory should provide:
- raw material inspection report (for carbon steel, galvanized steel, stainless steel, or aluminum)
- bending and welding dimensional inspection
- coating thickness and adhesion test
- hydraulic pressure and flow test records
- IP or NEMA rating statement if the enclosure is sealed
- packaging inspection report and drop test result for export
You can also mention that YISHANG supports OEM & ODM sheet-metal fabrication for hydraulic enclosures, electrical enclosures, and control cabinets under ISO9001 and RoHS-compliant finishing. This is not hard selling — it is telling the buyer “we can supply the paperwork you need.” That is exactly what many buyers in Europe, North America, and the Middle East want to confirm before placing repeat orders.
Procurement View — How to Compare Two Similar Offers
Often two suppliers will quote the same pressure and flow rate, but prices are very different. Your blog can help the buyer understand why. Ask them to check:
- plate thickness and type of material (carbon steel, galvanized steel, stainless steel, aluminum)
- surface treatment type (powder coating, hot-dip galvanizing, electrophoresis) and whether there is a test report
- whether the enclosure can also mount electrical enclosure parts like junction box, push button enclosure, or meter box
- whether the supplier can provide CE / UL / RoHS / ISO 9001 supporting documents
- export packaging quality (carton + pallet, corner protection, labeling)
When your article lists these points, buyers will bookmark it because they can actually use it to build their RFQ table. That kind of actionable content is what ranks better. To close the loop, you can add one sentence: if the buyer needs 3D design, technical drawing, or inspection certification for hydraulic power pack enclosures, they can send the inquiry and the engineering team will prepare it according to their market. This is a soft CTA, not a hard advertisement.
Sustainable and Future-Ready Design
Hydraulic power packs are also moving toward smarter and greener designs. Many end users want to mount sensors, IoT modules, or small control stations inside the same enclosure. That means the metal structure must reserve mounting space, cable routes, and proper protection levels. A good sheet-metal design can do this without changing the hydraulic circuit.
At the same time, more buyers are asking about RoHS-compliant coatings, recyclable materials, and low-VOC paints. Mentioning these in the article shows that your factory is keeping up with global procurement standards. It also makes your content look current, which helps SEO freshness.
Conclusion — Make Structure Part of the Hydraulic Specification
A hydraulic power pack that lasts is not only about the pump, valve, or motor. It is about the structure that holds them, the material that protects them, the coating that keeps them from rusting, and the documents that prove all this work was done. When buyers check these parts in advance, they reduce complaints, shorten installation time, and make their own brand look more professional.
If you are sourcing hydraulic power packs, hydraulic enclosures, or customized metal housings for industrial systems, send your inquiry to YISHANG and we will prepare a detailed quote and technical support based on your target market and usage environment.
