Introduction: Choosing the Right Enclosure Impacts More Than Just Protection
In wholesale electrical procurement, enclosures aren’t just about safety—they’re about performance, longevity, and minimizing maintenance disruptions. For many buyers sourcing large volumes, selecting between NEMA 3R and NEMA 12 is a critical decision tied to environmental compatibility, compliance, and long-term return.
These two enclosure ratings—often perceived as interchangeable—serve distinctly different purposes. Misjudging that difference can lead to early equipment failure, site delays, or elevated replacement costs. In this article, YISHANG brings its 26+ years of manufacturing insight to help you understand which option aligns with your application and how to specify the most efficient enclosure.
A Real-World Example: Why Our Client Chose NEMA 3R

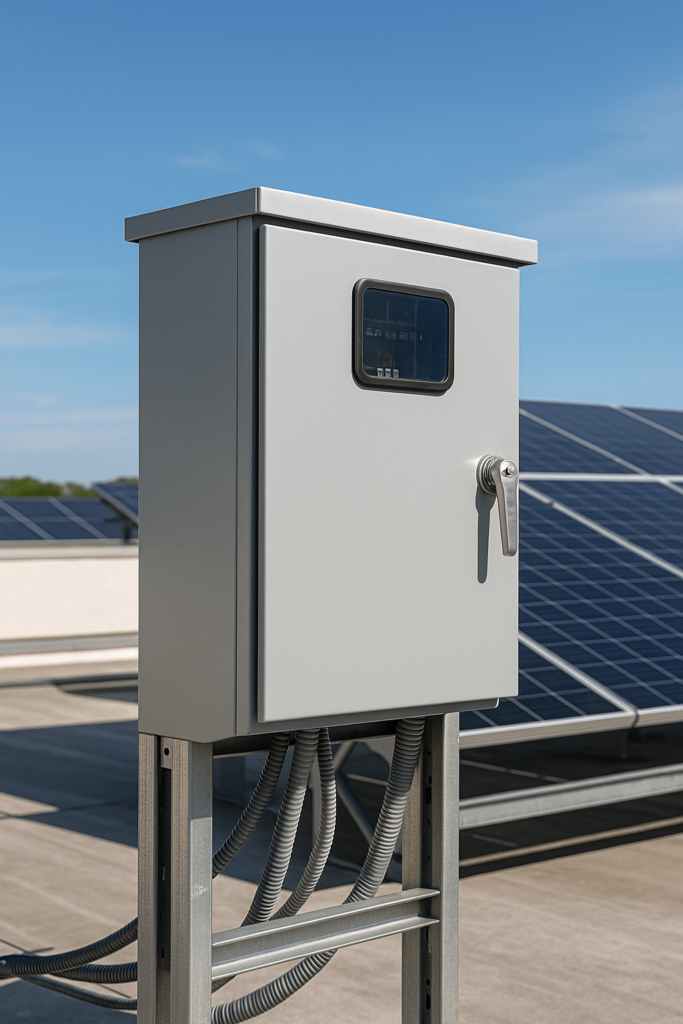

A U.S.-based solar energy wholesaler needed to protect critical power components installed on rooftops across several southwestern states. The initial plan specified NEMA 4, but after project evaluation, YISHANG proposed a customized NEMA 3R galvanized steel enclosure with marine-grade powder coating and enhanced weep-hole design.
Not only did this meet UL and NEC standards for outdoor weather resistance, but it also reduced project hardware cost by nearly 18%, with zero compromise in protection. We also delivered pre-punched conduit knockouts to simplify on-site integration—saving the integrator additional labor.
This solution met all functional demands while streamlining procurement cost and logistics, proving that understanding NEMA ratings impacts more than just specs—it drives smarter decisions.
What Is NEMA 12?
NEMA 12 enclosures are designed for indoor use, offering protection against dust, dirt, fibers, and light dripping of non-corrosive liquids. They prevent oil mist and airborne contaminants from reaching sensitive electrical components.
Typical applications include manufacturing floors, processing plants, and indoor control panels where dust and debris would otherwise shorten equipment life. Unlike outdoor-rated enclosures, NEMA 12 does not protect against rain or snow.
Understanding the Standards: Why NEMA Ratings Matter
NEMA ratings, created by the National Electrical Manufacturers Association, categorize enclosures based on environmental resistance. These include protection from dust, oil, corrosion, and precipitation. Unlike IP ratings that focus solely on ingress, NEMA adds construction and mechanical aspects.
Wholesale buyers must match ratings to site hazards. NEMA 3R protects against falling rain, sleet, and external ice, making it a go-to for general outdoor use. In contrast, NEMA 12 prevents dust and light liquid ingress, ideal for indoor industrial settings like fabrication floors or assembly lines.
For reference, UL 508A and NEC 110.26 frequently call out NEMA compliance to meet installation codes. So beyond equipment performance, enclosure compliance also affects project inspection and acceptance.

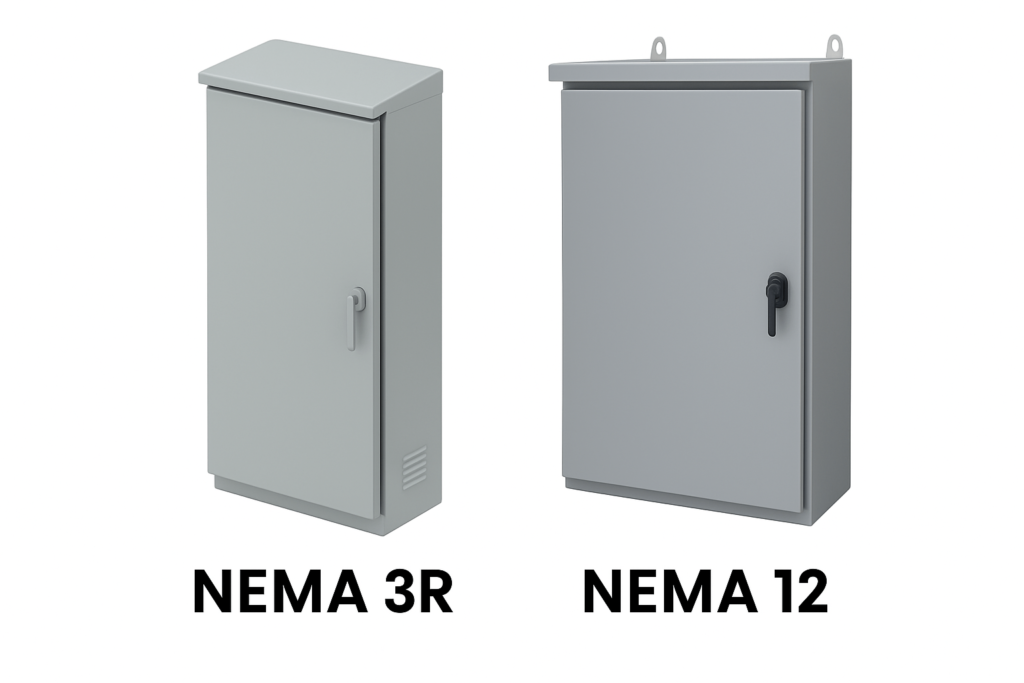

Technical Breakdown: How NEMA 3R and NEMA 12 Perform Differently
Before diving into the side-by-side comparison, it’s important to remember that NEMA 12 is strictly for indoor dust and oil resistance, while NEMA 3R is for outdoor weather protection.
Protection Capabilities by Environment
Outdoor use often means exposure to weather shifts, UV, and condensation. NEMA 3R handles these via sloped tops, drip edges, and breathable drainage—all without full sealing. It’s effective in non-corrosive exterior environments like solar farms, telecom stations, or pump control boxes.
By contrast, NEMA 12 is built for dust control and oil mist resistance. It includes full gasket compression around all openings, helping prevent failures caused by conductive debris or mist infiltration in workshops and electrical rooms.
Material and Build Comparisons

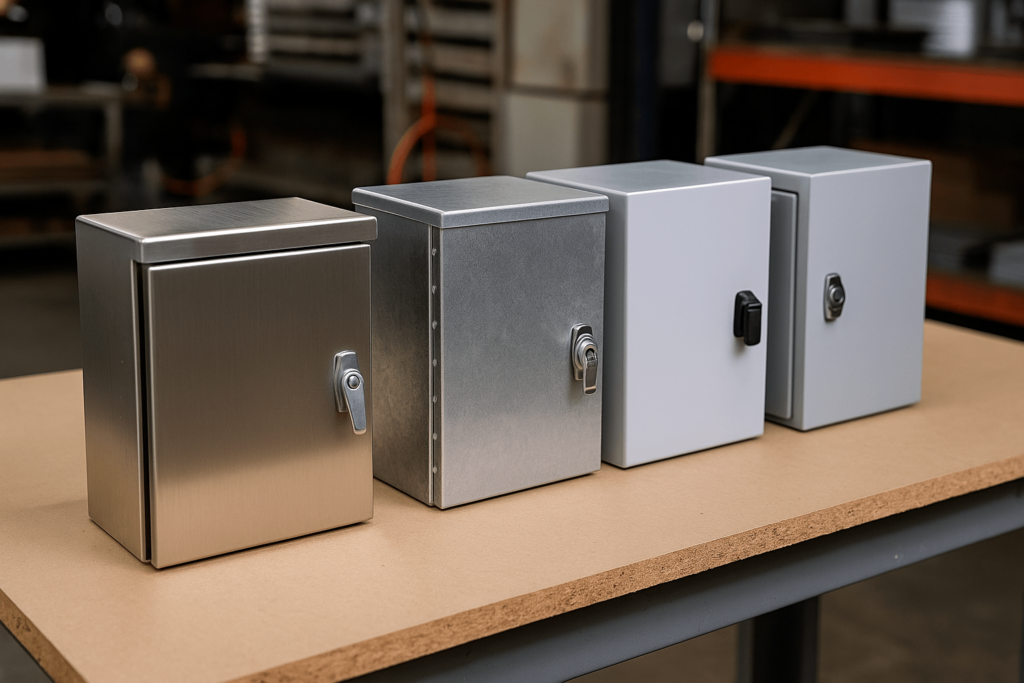

Materials drive both cost and performance. For bulk orders, galvanized steel or aluminum is common for NEMA 3R, offering corrosion protection without the cost of stainless steel. Cold-rolled steel is the norm for NEMA 12 in indoor spaces, often paired with powder coating.
YISHANG regularly produces enclosures in SS304, SS316, aluminum, red copper, and zinc-coated steel, depending on client needs. Options like double doors, hinged panels, or laser-cut branding can be built-in to align with OEM requirements.
| Feature | NEMA 3R | NEMA 12 |
|---|---|---|
| Location | Outdoor | Indoor |
| Dust Protection | No | Yes |
| Water/Sleet Protection | Yes | No |
| Oil Resistance | No | Yes |
| Common Materials | Galvanized Steel, Aluminum | Cold-Rolled Steel, SS304 |
What’s the Difference Between NEMA 1 vs NEMA 3R?
While this article primarily compares NEMA 3R and NEMA 12, many wholesale buyers also ask how NEMA 1 vs NEMA 3R differ—and when to use each.
| Feature | NEMA 1 (Indoor) | NEMA 3R (Outdoor) |
|---|---|---|
| Location | Indoor, dry environments | Outdoor, exposed to rain and sleet |
| Dust Protection | Minimal | Minimal |
| Water Resistance | No | Yes (rain, snow, external ice) |
| Common Use | Office walls, indoor control panels | Rooftop power units, telecom poles |
| Cost | Lowest among NEMA-rated enclosures | Moderate, weather-capable |
✅ Summary: Use NEMA 1 when protection from accidental contact is needed in dry, clean indoor areas. Use NEMA 3R when basic weatherproofing is needed outside.
YISHANG supports both enclosure types. For projects that don’t require dust sealing or oil resistance, NEMA 1 enclosures offer the most cost-effective solution for large-volume indoor installations.
Lifecycle Impact and Maintenance Efficiency
For high-volume orders, every product lifecycle counts. Enclosures mismatched to their setting degrade faster—requiring more frequent replacement or emergency servicing. This risk compounds across hundreds or thousands of units.
We’ve seen customers save up to 30% in maintenance labor over five years just by selecting the proper NEMA rating from the outset. YISHANG assists by factoring in UV tolerance, dust exposure, and cleaning schedules during design proposals.
Matching Rating to Real Use Cases
| Application Area | Best Enclosure Choice | Why It Matters |
| Rooftop Power Distribution | NEMA 3R | Rain-resistant, UV-tolerant, cost-effective |
| Indoor Machinery Room | NEMA 12 | Dust & oil sealing needed for electronics |
| Telecom Cabinet (Pole Mount) | NEMA 3R | Minimal airborne debris, needs rain guard |
| Packaging Line Control Panel | NEMA 12 | Frequent air particulates, requires sealing |
Procurement managers must also consider the supply chain fit: NEMA 12 units require tighter manufacturing tolerances and gaskets, affecting lead time and cost. NEMA 3R, often more modular, offers faster scaling for large-batch delivery.
Deciding Factors for Procurement Professionals
Cost vs. Risk Balance
A common mistake in wholesale sourcing is over-specifying protection. NEMA 4 enclosures can be 40–60% more expensive than NEMA 3R, yet for many rooftop or pole-mount applications, that added cost delivers minimal added benefit.
Conversely, underspecifying—such as placing a NEMA 3R box in a dust-heavy workshop—invites downtime and warranty claims. YISHANG helps balance these concerns by offering pre-assessment services and quote-based customization for both enclosure type and finish.
Customization, MOQ, and Delivery Capacity
YISHANG supports projects of various scales with flexible production options. Whether your order requires 100 or 10,000 units, we accommodate with structured MOQ policies, strategic inventory management, and lean production.
For most standard designs, lead times range from 7–20 working days depending on order volume. Custom designs involving CNC punching, laser etching, or branding integration can be scheduled with parallel sampling support to meet rollout deadlines.

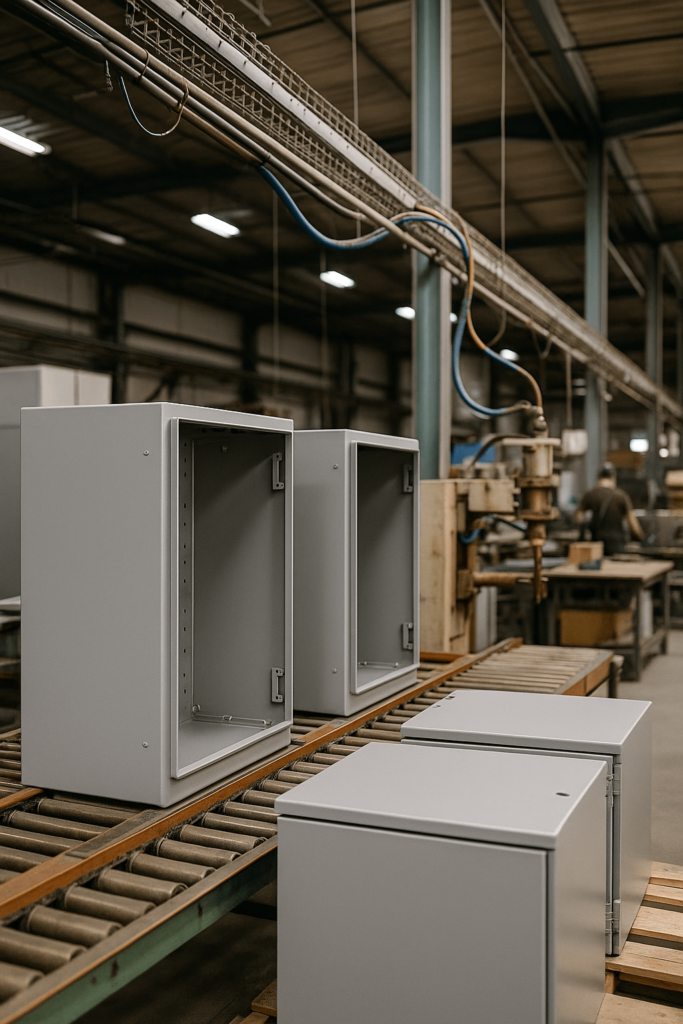

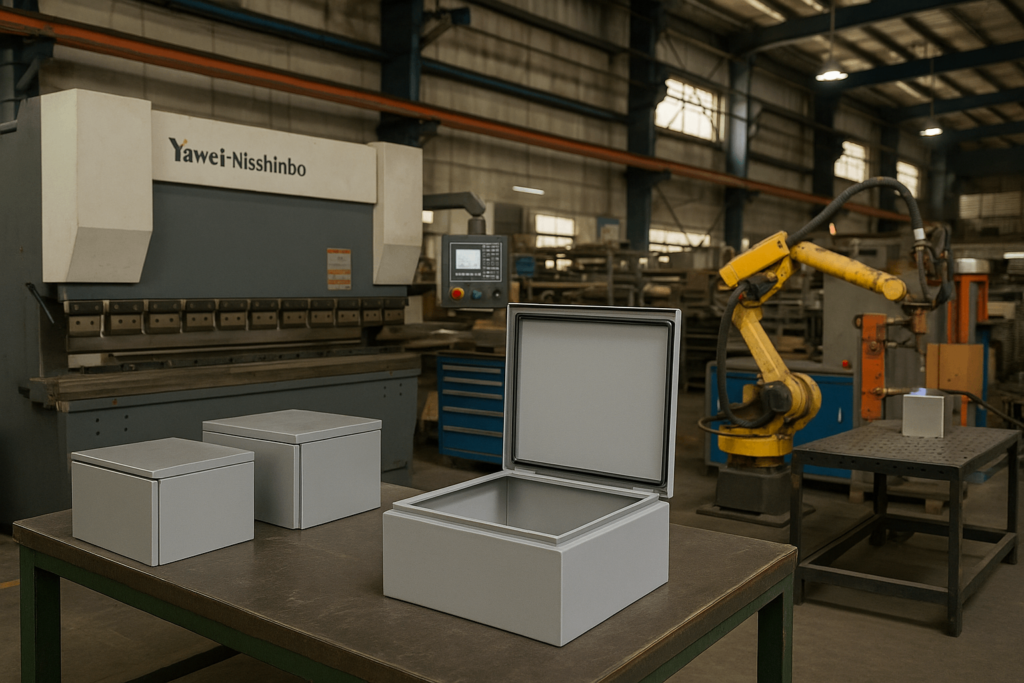

Our production line integrates sheet metal cutting, bending, welding, surface treatment, assembly, and testing, all under one roof—cutting outsourcing delays and boosting reliability.
FAQs: Clarifying What Buyers Ask Most
Is NEMA 12 waterproof? No—it resists dust and light drips but not rain or hose-down. Use NEMA 4 for water-intensive zones.
Can one enclosure be both 3R and 12? Rarely. They’re designed for different hazards. However, YISHANG can engineer hybrid-rated enclosures upon request.
Which material is best for corrosion resistance? SS316 performs best in coastal or chemical-heavy areas. Aluminum is a good mid-range alternative with lighter weight.
Can you help us evaluate which rating we need? Yes, our engineering team provides pre-sales application consulting to wholesale partners.
What’s the difference between NEMA 1 vs NEMA 3R?
NEMA 1 is for basic indoor use, protecting against contact and light dust. NEMA 3R is for outdoor use, offering protection from rain, snow, and external ice. NEMA 3R is the better option when any exposure to weather is expected.
What is NEMA 12?
NEMA 12 is an enclosure standard for indoor applications. It protects against dust, falling dirt, fibers, and light liquid drips. It is not intended for outdoor use or heavy water exposure.
Conclusion: Smarter Ratings, Smarter Procurement
For global sourcing teams, choosing between NEMA 3R and NEMA 12 is more than a technical detail—it’s a strategic step in controlling failure risk, lifecycle cost, and client satisfaction.
With over two decades of fabrication expertise, YISHANG helps buyers optimize this decision by aligning environmental needs with engineering feasibility and manufacturing cost.
