Introduction: From a Simple “Zap” to a Complex Science
Resistance spot welding is not just a joining method—it’s a precision-controlled process essential to automotive, medical, and industrial sheet metal parts. For procurement managers and engineers sourcing high-volume, zero-defect components, mastering this system is critical.
Guesswork leads to costly defects: undersized nuggets, interfacial cracks, poor fusion. These failures compromise safety, trigger recalls, and damage brand trust.
This guide offers a structured framework tailored for industrial buyers and OEM engineers. You’ll learn how to diagnose issues, optimize parameters, and engineer robust spot welds using real-world process controls.
Every modern car is held together by thousands of invisible joints. These aren’t just connections—they’re feats of controlled heat and metallurgy.
Part 1: The Foundational Strategy — Is Spot Welding the Right Choice?
Before diving into process optimization, a crucial strategic decision must be made: is spot welding the ideal joining method for your specific application?
While incredibly versatile, it is one of several resistance welding techniques. Making the right choice from the outset prevents costly redesigns and ensures the final product meets its performance requirements for strength, sealing, and cost.
A strategic choice requires understanding the core differences in process and outcome. The following table provides a clear comparison to guide your decision-making.
| Feature | Spot Welding | Seam Welding | Plug Welding |
|---|---|---|---|
| Process | Creates a series of intermittent, circular “spot” welds where pointed electrodes clamp the material. | Uses roller-style electrodes to create a continuous, overlapping series of spot welds, forming a leak-proof seam. | A hole is punched in the top sheet, and the weld is made by filling that hole to join it to the bottom sheet. |
| Best For | High-speed assembly of structural components, brackets, and enclosures where a continuous seal is not required. | Fabricating fuel tanks, radiators, and containers that must be gas-tight or liquid-tight. | Joining thicker materials to thinner ones or for applications where access is limited to one side. |
| Key Outcome | High structural integrity and rapid joining of overlapping sheets. | A continuous, hermetically sealed joint. | A strong, localized join, often used as an alternative to riveting or when spot welding is not feasible. |
The Business Case for Spot Welding
When your application aligns with its strengths, the spot welding advantages directly impact production efficiency and cost. It remains the dominant process in high-volume sheet metal fabrication for three compelling reasons that are critical for wholesale procurement:
- Unmatched Production Speed: With weld times measured in milliseconds, spot welding is ideal for automated production lines where thousands of joints are required. This high throughput supports tight schedules and cost control.
- Cost Efficiency: It’s a filler-free process. No flux, no shielding gases—just durable electrodes. Long electrode life, when managed well, significantly reduces operating costs.
- Precision on Thin Metals: The localized heat input results in a smaller heat-affected zone (HAZ), reducing the risk of distortion. This makes it optimal for tight tolerance parts and improves downstream fit-up accuracy.
Part 2: The 7 Critical Factors for a Perfect Weld — A Problem-Solving Framework
Achieving perfection requires mastering an interconnected system of variables. A failure in one area can compromise the entire process. This framework breaks down the seven critical factors into a logical workflow for diagnosing and preventing issues.
Factor 1: The Weld Lobe — Mastering Your Process “Safe Zone”
The single most important concept for achieving stable, high-volume production is the spot welding process window, or “weldability lobe”.
This is not a single “perfect” setting, but a map of all acceptable parameters that will produce a sound weld. For a procurement manager, a supplier’s mastery of this concept indicates their ability to deliver consistent quality at scale.
The “safe zone” is defined by two boundaries:
- Lower Limit: The minimum energy needed to form a weld nugget meeting strength specifications. Below this, “cold welds” occur with poor fusion.
- Upper Limit: The expulsion threshold, where excess energy leads to weld splash—a serious defect that weakens the joint.
Operating near the center of the widest possible lobe ensures maximum tolerance to real-world variables like electrode wear and material variation, maximizing process stability and uptime.
Factor 2: Material Weldability — A Practical Guide to Difficult Metals

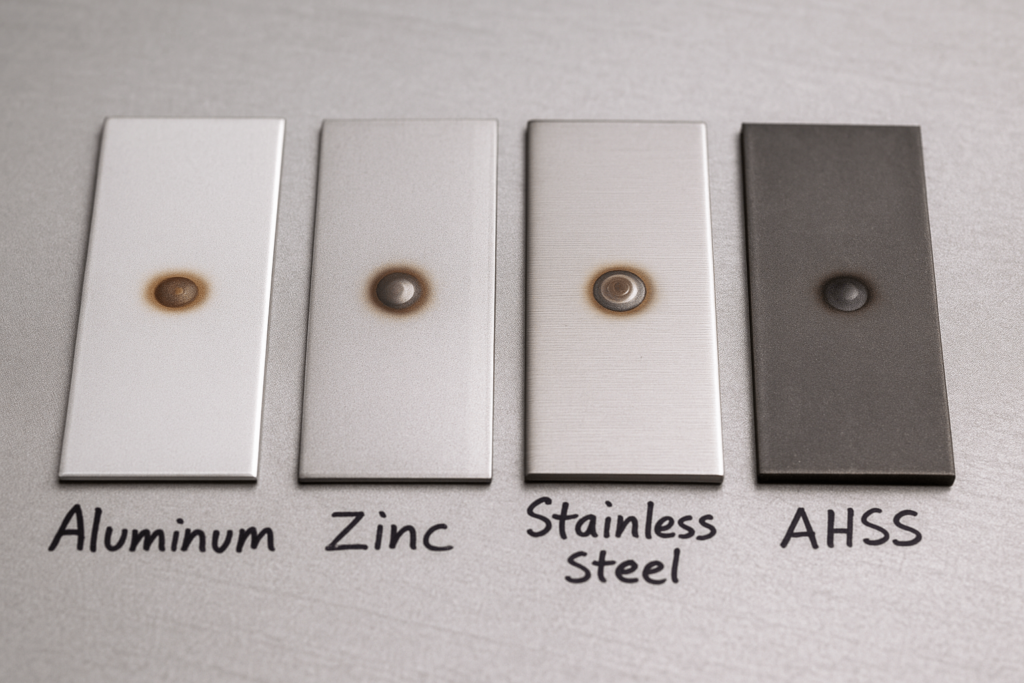

The weldability of different spot welding materials depends on their metallurgical behavior and thermal response. Mastery here is a key supplier differentiator.
- AHSS: Used widely in automotive, Advanced High-Strength Steels are prone to interfacial fracture rather than button pull-out during destructive testing. This doesn’t imply a bad weld—it can still meet or exceed load specs.
- Aluminum Alloys: Challenging due to high conductivity and a persistent oxide layer. Requires very high currents (22,000–28,000 amps) and oxide removal per ISO 18595 standards.
- Galvanized Steels: Zinc coatings lower melting point and lead to “brassing” on electrodes. Also poses a risk of Liquid Metal Embrittlement (LME), where molten zinc causes microcracks.
- Dissimilar Metals: Susceptible to intermetallic compounds (IMCs), which are brittle and create weak spots. Careful alloy selection and waveform tuning are critical here.
Factor 3: Electrode Strategy — The Unsung Hero of Weld Consistency

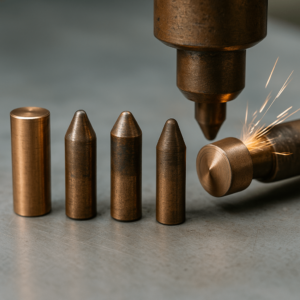

Spot welding electrodes deliver both heat and pressure. Managing them well is central to production consistency.
- Material Selection:
- Class 1: Highest conductivity, soft—used for aluminum.
- Class 2: Balanced—standard for steels.
- Class 3: Harder, lower conductivity—suitable for high-strength alloys.
- Cooling: Must maintain 4–6 liters/minute water flow to prevent “mushrooming” and extend life.
- Maintenance:
- Dressing: Machining the tip restores contact geometry.
- Current Stepping: Gradually increasing current offsets tip growth over time.
Factor 4: Design for Welding — How to Engineer-Out Defects from the Start
No machine can fix bad design. Sound weld joint design prevents failure before production begins.
- Clean Surfaces: Rust, oils, and dirt impede conductivity, causing arcing or splash.
- Fit-Up Matters: Gaps between sheets reduce clamping efficiency and raise the risk of expulsion.
- Shunting Effect: Too-close welds divert current. Follow spacing rules—typically 4–5× the nugget diameter—to avoid underpowered joints.
Factor 5: The Physics in Practice — Advanced Parameter Control
The key equation is Joule’s Law: Q = I²Rt. Current (I) has the greatest influence.
Modern systems use advanced waveform shaping:
- Upslope: Gradually increases current to reduce splash.
- Downslope: Controls cooling to reduce cracking in sensitive materials.
Proper waveform design tailors heat input to material behavior, optimizing nugget quality.
Factor 6: Quality Assurance — How to Verify Weld Integrity
A serious supplier implements rigorous QA:
- Ultrasonic Testing (UT): Measures nugget size via sound wave reflections—fast, non-destructive.
- Destructive Testing:
- Peel Test & Chisel Test confirm joint strength.
- Button Pull-out is preferred for mild steel; interfacial fracture is acceptable in AHSS if strength requirements are met.
Factor 7: The Final Finish — Post-Weld Treatments
Stainless steel needs post-weld cleaning to prevent corrosion from heat tint.
Options include:
- Mechanical: Stainless brush.
- Chemical: Pickling + passivation with nitric or citric acid.
- Electrochemical: Simultaneous cleaning and passivation using low-voltage current.
Part 3: Pro-Tip — Achieving a Flawless Finish on Cosmetic Surfaces
Where visual appearance matters, controlling spot weld indentation is key.
Use a larger, flat-faced electrode on the visible side to reduce marking. Alignment must be perfect to avoid irregular contact pressure.
Part 4: The Future is Now — Smart Welding with AI and Adaptive Control
Next-generation AI-assisted welding improves both quality and consistency:
- Real-Time QA: Algorithms assess weld signature data instantly.
- Predictive Maintenance: Detects electrode wear before defects arise.
- Generative AI: Automatically designs optimized weld schedules.
Suppliers adopting these tools deliver smarter, more scalable production.
Part 5: Spot Welding FAQ — Your Questions, Answered
- What causes weld splash (expulsion)?
- Excessive heat from high current, long time, or low force. Control current ramp and tip force.
- Can you weld different thicknesses?
- Yes, with a max ratio of 3:1. Smaller tip faces the thicker sheet to manage heat.
- How strong is a spot weld?
- Strength = nugget size × material strength. A common formula: 5 × √sheet thickness (in mm).
- Why is aluminum harder to spot weld?
- High conductivity and a stubborn oxide layer demand extreme current and surface prep.
- What is the shunting effect?
- Current bypasses a new weld by flowing through a nearby one. Avoid by spacing welds properly (4–5× nugget diameter).
Conclusion: It’s Not One Factor, It’s the Entire System
Mastering resistance spot welding means mastering a complete system.
For procurement professionals, the ability to evaluate a supplier’s expertise across process control, material knowledge, and QA is a safeguard against risk.
At YISHANG, a trusted sheet metal manufacturer with 26+ years of global experience, we support OEMs and wholesale buyers through proven quality systems and deep engineering know-how. Contact our team for consultation on your next precision welding project.
