✅ For International Procurement Teams, Product Engineers, and B2B Wholesalers
Are you sourcing fasteners for metal cabinets, vending machines, architectural panels, or industrial furniture? If so, understanding stainless steel barrel nuts is essential to prevent costly mistakes in assembly, corrosion resistance, or installation.
This definitive guide, developed by OEM-certified manufacturer YISHANG, helps you:
- Select the right type of barrel nut for your application
- Choose the optimal steel grade (304, 316, 410) based on environment
- Understand how cold forming vs. CNC machining affects cost & strength
- Avoid installation issues like thread galling or misalignment
- Identify when barrel nuts are not the right choice
- Streamline RFQs using our Global Sourcing Checklist
Introduction: Why Barrel Nut Failure Costs More Than You Think
In the world of global sourcing and volume-based metal part procurement, even small failures in components like barrel nuts can cascade into serious operational issues. From stalled production lines to warranty claims and damaged reputation, fastener failure is more than an inconvenience—it’s a profit killer.
For OEMs, product engineers, and international sourcing managers, understanding stainless steel barrel nuts is essential. These fasteners may appear simple, but hidden within are choices about thread types, steel grades, manufacturing methods, and real-world failure modes.
This guide—developed by precision metal fabricator YISHANG—is designed to help you eliminate sourcing risks, avoid misapplications, and ensure long-term product durability. Whether you’re buying for industrial enclosures, furniture, kiosks, automotive frames, or architectural applications, this guide breaks down:
- The two types of barrel nuts and how mislabeling causes sourcing errors
- The material grade trade-offs (304, 316, 410) and how to spec for cost-performance balance
- The difference between cold forming vs. CNC machining, and why it matters
- Key installation failure points—and how to train or design around them
- When not to use barrel nuts at all—and what to use instead
- A global sourcing checklist to communicate specs clearly to your supplier
Let’s dive into what makes barrel nut procurement smart—or dangerously flawed.

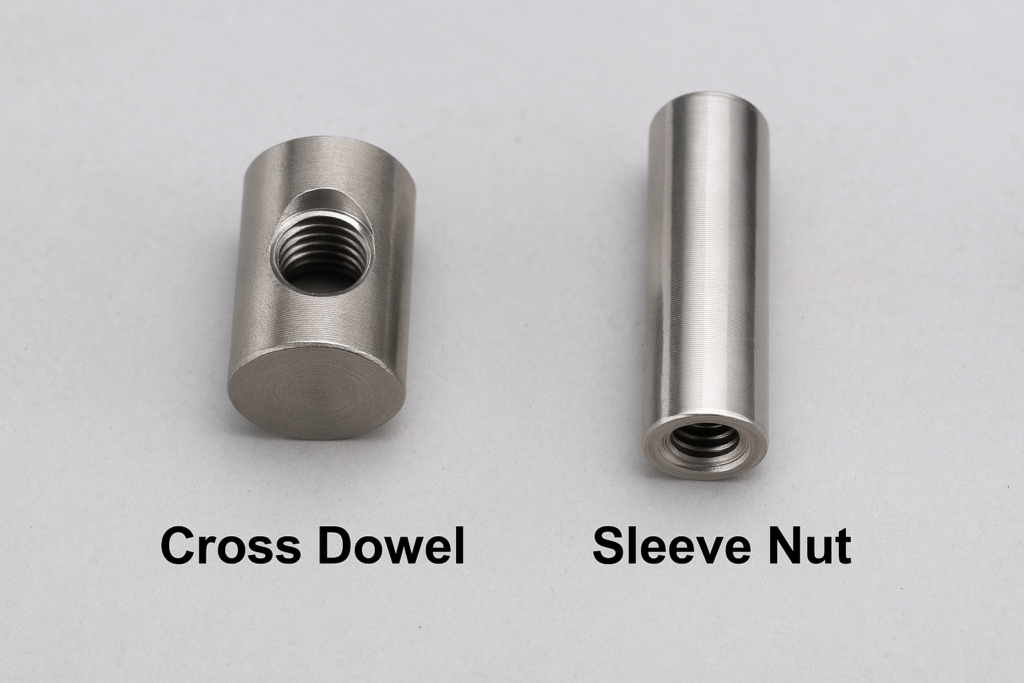

Nomenclature Confusion — Cross Dowel vs. Sleeve Nut
Many purchasing errors start here: the term “barrel nut” is used interchangeably for two very different products.
Cross Dowel Nut (Perpendicular Threading)
This nut has a thread that runs perpendicular to the cylinder’s axis. It’s inserted into one component (e.g., wood or metal tubing), while a bolt is driven through a perpendicular piece. Common in furniture, bed frames, metal structures.
Advantages:
- High pull-out strength
- Ideal for 90-degree joints
- Hidden aesthetics
Procurement Notes:
- Must specify: outer diameter, thread size (e.g., M6, M8), body length
- Misaligned pilot holes = unusable assembly
Sleeve Nut / Sex Bolt (Axial Threading)
Here, the bolt and nut align linearly. Often used in architectural signage, panels, kiosks, marine enclosures.
Advantages:
- Flush finish, tamper-resistant
- Supports high axial clamping force
Procurement Notes:
- Must define: head type (flat, dome), sleeve length, thread spec, finish
🔧 Avoid This Trap: Always include a drawing and define threading direction.

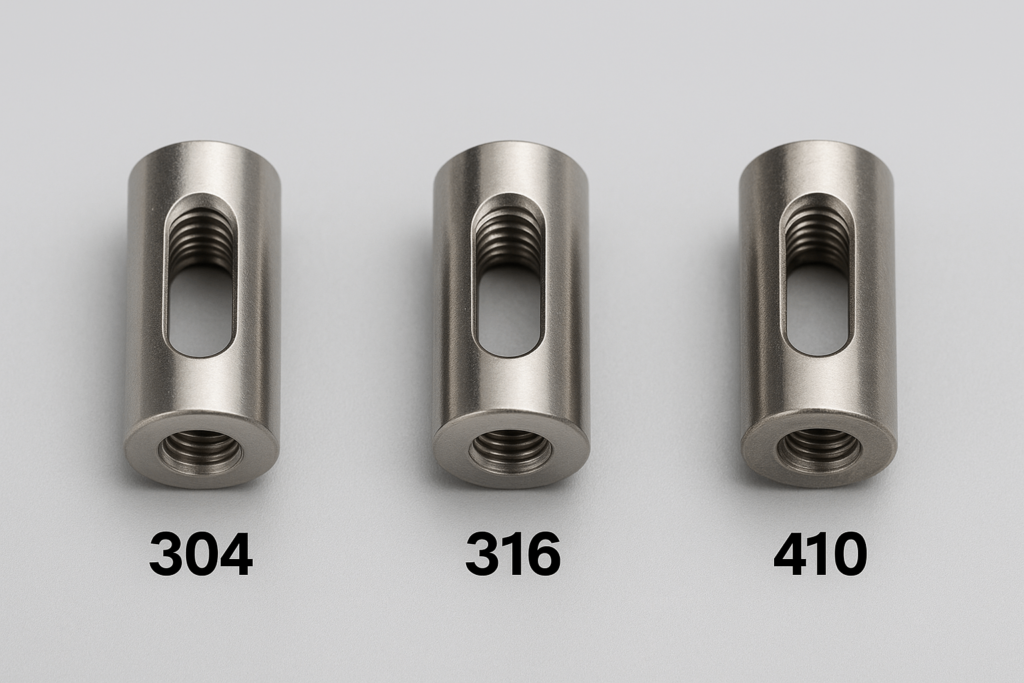

Material Selection — Why 316 Isn’t Always Better
Not all stainless steels are equal. Choosing the wrong grade inflates cost—or worse, causes corrosion failures.
304 (A2) Stainless
- Affordable, widely used
- Great for general indoor/outdoor use
- Susceptible to chloride corrosion (marine/coastal zones)
316 (A4) Stainless
- Superior corrosion resistance (thanks to molybdenum)
- Required for marine, medical, food, and chemical environments
- ~50–75% more expensive than 304
410 Stainless
- Heat-treatable for high strength
- Moderate corrosion resistance
- Magnetic, may not be suitable for electronics
📌 Tip: Don’t over-spec. Use 316 only when needed. For high volumes, material cost impacts your bottom line.
Manufacturing Methods — Cold Formed vs. CNC Machined
Same spec. Same thread. Different manufacturing = different cost and strength.
Cold Formed Barrel Nuts
- Deformed from metal wire or slug using pressure
- High-speed, high-volume, low-cost
- Better fatigue strength due to continuous grain flow
Best for:
- Commodity parts (e.g., knockdown furniture, industrial shelving)
- Tight BOM pricing
CNC Machined Barrel Nuts
- Cut from solid bar stock
- Enables complex geometries, tight tolerances
- Higher cost, longer lead time
Best for:
- Low-volume or custom fasteners
- Architectural hardware, marine, or OEM prototypes
💡 OEM Insight: Communicate the intended application. Let your supplier choose forming if possible.
Installation Pitfalls — When Theory Meets Reality
More barrel nut failures happen during installation than in testing. Here’s why.

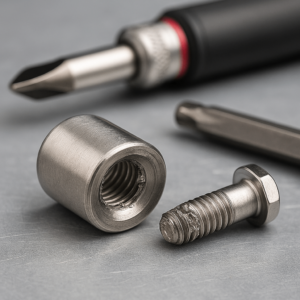

Galling
- Friction between stainless threads causes them to seize during tightening
- Happens more often at high torque or with similar stainless grades
Solutions:
- Use anti-seize lubricant
- Avoid same-grade threads (e.g., 304 bolt + 304 nut)
- Reduce installation RPM
Cross-Threading / Misalignment
- Especially common with perpendicular (cross dowel) designs
- Even 1mm misalignment can make assembly impossible
Solutions:
- CNC pilot holes
- Chamfered nut entries
- Pre-aligned jigs
Over-Torquing
- Can deform material, strip threads
- Creates false “tightness” impression when nut is just flush
Solution:
- Define torque specs in technical drawings
- Train line workers on torque control
🛠️ Design Tip: Add internal threads 2mm deeper than bolt to absorb tolerance stack-ups.
When Barrel Nuts Are the Wrong Choice
Barrel nuts don’t solve every fastening need. Here’s when to avoid them.
Soft Materials (Plastic, MDF, Softwood)
- Barrel nuts may crush or deform material
- Use press-fit inserts or T-nuts instead
Dynamic/Vibration Loads
- Threads can loosen over time
- Alternative: lock washers, thread-locking adhesives, or welded joints
Harsh Chemical or Contaminated Zones
- Even 316 can fail under strong acid/base exposure
- Consider coated fasteners, duplex steels, or non-metallic options
📉 Cost-Saving Note: Misapplication = warranty claims = long-term cost.
Barrel Nut Buyer’s Checklist (For Global Procurement Teams)
Ensure smooth RFQ-to-shipment execution with this checklist.
| ParameterDetails to Specify | |
|---|---|
| Nut Type | Cross dowel or sleeve (axial vs. perpendicular threading) |
| Thread Size | e.g., M6 × 1.0, UNC ¼-20 |
| Body Length | In mm/inches (± tolerance) |
| Material | 304, 316, or 410 Stainless? |
| Finish | Polished, passivated, electropolished, etc. |
| Quantity | MOQs, batch sizes |
| Packaging | Bulk, individual bags, with washers? |
| Certification | RoHS, ISO 9001, REACH if needed |
| Application Notes | Assembly method, environment, torque limit |
📦 Supplier Collaboration Tip: Share CAD + PDF drawing + volume forecast. It accelerates tooling and pricing.
Conclusion: Simplify Fastener Procurement. Minimize Risk. Partner With Experts.
Stainless steel barrel nuts are not a simple commodity. Every spec—from thread orientation to surface finish—can affect performance, installation speed, and product lifetime.
YISHANG helps buyers in over 50 countries avoid fastener failures by offering:
- 26+ years of OEM metal manufacturing experience
- Expertise in sheet metal, welding, CNC, and assembly
- In-house support for design validation, prototyping, packaging
- Proven quality systems: ISO 9001, RoHS, and full traceability
We don’t just quote fasteners. We solve fitment failures before they happen.
📞 Need barrel nuts for your next production run? Contact YISHANG today for a free DFM consultation or sample evaluation.
FAQs: Stainless Steel Barrel Nuts
Q1: What’s the difference between a cross dowel and a sleeve nut?
A cross dowel has a thread running perpendicular to its length, ideal for 90-degree joints. A sleeve nut (aka sex bolt) has axial threading and is used for inline clamping in signage, panels, etc.
Q2: Can I use 304 stainless steel in marine environments?
Not recommended. Use 316 stainless steel, which includes molybdenum and resists chloride corrosion better.
Q3: How can I prevent galling during installation?
Use anti-seize lubricants, slow down torque, and avoid using same-grade bolt/nut pairs (e.g., 304 bolt + 304 nut).
Q4: What thread sizes are most commonly used for barrel nuts?
M6, M8, and 1/4”-20 UNC are most common. Always confirm with your assembly drawing.
Q5: What info should I include in an RFQ for custom barrel nuts?
Nut type, thread spec, material, finish, drawing file, quantity, and packaging instructions.
Q6: Do you offer prototyping or small-batch production for custom designs?
Yes. YISHANG supports prototyping and low-volume production with CNC machining and full DFM review.
