tFor electrical engineers, procurement managers, and wholesale buyers across industries like EV charging, telecom, and industrial automation, transformer sizing is no longer just about matching specs—it’s a high-impact investment decision.
While conventional guides simplify transformer sizing into basic kVA tables, real-world electrical systems are complex, dynamic, and increasingly nonlinear. Missteps—whether in the form of undersizing or oversizing—can lead to operational risks or decades of silent cost bleed.
In this field guide, we present a strategic framework based on Total Cost of Ownership (TCO) that enables industrial professionals to make optimal transformer sizing decisions. Whether you’re sourcing units for a smart building, solar farm, or scaling up EV charging infrastructure, this guide will walk you through practical, evidence-based trade-offs.
Explore our industrial enclosures for transformers
Hidden Failures in Sizing Decisions: Oversizing vs. Undersizing
Transformer sizing errors fall into two categories, both equally damaging from a TCO perspective. One is loud and destructive. The other is quiet and cumulative.
Undersizing: The Fast Path to System Failure
When a transformer is undersized, it frequently operates above its rated capacity. This results in:
- Excessive heat buildup
- Insulation degradation
- Reduced transformer lifespan
- Increased fire hazard risk
Overheating leads to dielectric breakdown and, ultimately, thermal runaway. Systems that suffer this kind of failure can cause downtime, asset damage, and reputational loss. Especially in mission-critical environments like healthcare or data centers, undersizing can be catastrophic.
Oversizing: The Invisible Budget Drain
Oversizing is often seen as a “safe bet.” In reality, it leads to poor transformer utilization, high idle losses, and long-term inefficiency. For example, a transformer operating at only 15–20% load spends its life incurring no-load core losses, which remain constant regardless of demand.
Over a 25–30 year life cycle, this inefficiency compounds into thousands of dollars in wasted energy costs. This often goes unnoticed in early procurement stages—but ultimately affects bottom lines.
Solution: Avoid both extremes by integrating operational profiles into your sizing strategy and using a TCO framework for evaluation.
The TCO Framework: Your ROI Tool for Transformer Sizing
Rather than looking only at the sticker price, procurement teams should consider the Total Cost of Ownership when selecting a transformer.
TCO Calculation Formula:
TCO = Initial Cost + (A × No-Load Losses) + (B × Load Losses)
- A-Factor: The monetized impact of constant no-load energy losses.
- B-Factor: The cost of load-related losses based on actual usage profiles.
It allows engineers to quantify trade-offs between upfront costs and operational efficiency. This is especially valuable in regions with high electricity tariffs or sustainability goals.
Application Example:

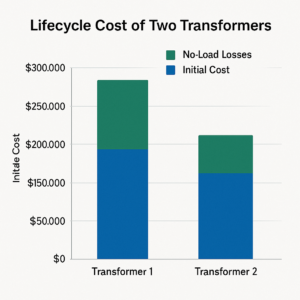

Consider two transformers: one with a lower price but higher no-load loss, and another with 30% better energy efficiency. The efficient model may recoup the initial extra cost within five years—generating long-term savings beyond that.
Bottom Line: Always evaluate transformer specs with your energy pricing and system runtime in mind.
Learn more about TCO optimization at EnergyStar.gov
Trade-Off 1: Understand Your Load Profile Before You Size
Accurate load data is the backbone of transformer sizing. Yet many buyers still rely on nameplate ratings alone. This leads to severe oversizing.
Use Demand, Diversity, and Power Factors

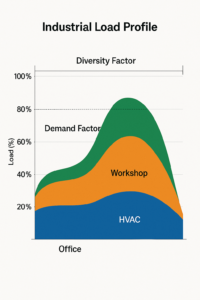

- Demand Factor (≤1) = Max actual load / Total connected load (per unit)
- Diversity Factor (≥1) = Sum of individual max demands / Group’s max demand
These metrics help refine expected load behavior. For example, five machines with 100 kVA each may have a group peak of only 250 kVA due to operational stagger. Without applying diversity, you’d spec a 500 kVA unit—doubling costs.
Power Factor (PF) Correction
Transformer ratings are in kVA, but utility billing and efficiency depend on kW. A PF of 0.8 means your system draws 25% more current than expected, leading to increased heating and undersizing risks.
Pro Tip: Invest in PF correction equipment or consider PF when choosing transformer capacity.
Trade-Off 2: Don’t Ignore Harmonic Loads – K-Factor Explained
Nonlinear loads like EV chargers, VFDs, or UPS systems introduce harmonics—distorted waveforms that create excessive heating in transformers.
What Is K-Factor?
K-Factor ratings define how well a transformer handles harmonic currents:
- K-4: Light industrial
- K-13: Medical equipment, telecom
- K-20: Data centers, EV infrastructure
A true K-rated transformer includes:
- Reinforced winding insulation
- Larger conductors
- Enhanced core material
- Double-sized neutral to handle triplen harmonics
Substituting a standard K-1 transformer and upsizing it does not provide harmonic tolerance. It’s a dangerous myth that could lead to system overheating and failure.
Tip: For any system using nonlinear loads >15%, start with K-13 as a baseline.
Trade-Off 3: Managing Faults and Stability via % Impedance (Z%)
Transformer impedance controls the current during faults and the voltage drop under load.
Low vs. High Impedance
- Low Z (4–6%): Stable voltage, high fault current. Best for electronics, but requires complex protection.
- High Z (10–12%): Limits fault current but allows more voltage drop under load. Ideal for fault-sensitive grids.
Matching impedance to your system’s “personality” is critical. For fast-switching industrial systems, a mid-range Z (6–8%) often balances safety and performance.
Design Note: Always align impedance values with circuit breaker curves and fault studies.
Trade-Off 4: Future-Proofing Without Wasting Money
Overprovisioning Pitfall
It’s tempting to spec a larger transformer for future expansion. But unless your load growth is certain and scheduled, oversizing increases A-Factor losses significantly.
Right-Sizing Plan
- Use real projections (max 5-year load plan)
- Modular approach: plan for additional transformers, not larger ones upfront
When to Derate Instead
If the installation is in high ambient temperature, altitude, or a confined enclosure, derating is necessary—not oversizing. Use IEEE 241 or IEC 60076 guidelines to adjust capacity.
YISHANG Insight: Proper enclosure ventilation and heat dissipation design can reduce derating factors, preserving capacity without oversizing.
Field Insight: When a 315 kVA K-1 Transformer Failed in a Data Center
In 2023, a data center in Spain suffered repeated outages traced to overheating in a standard K-1 transformer feeding variable frequency drives (VFDs). Thermal imaging revealed uneven winding temperatures and neutral overload.
Our engineering team replaced the unit with a K-13 transformer, featuring oversized conductors and double-neutral wiring. The result: temperature dropped by 18°C, and the site has had zero incidents since.
Lesson: When harmonic loads are present, don’t assume size compensates for lack of specification. Always use purpose-built units.
Case Study: Saving Over €1,500 Through TCO Optimization
Two 250 kVA transformers:
- Unit A: €3,000, higher core loss
- Unit B: €3,539, premium model with low core losses
Using regional electricity cost and a 20-hour/day load cycle, Unit B’s energy efficiency leads to savings of over €1,500 within 10 years—despite higher upfront cost.
This validates the ROI of TCO-based selection. Procurement professionals who run these comparisons are seen as value creators, not cost centers.
Quick Checklist: How to Choose the Right Transformer in 5 Steps
- Identify actual peak load (use Demand & Diversity Factors)
- Correct for power factor and harmonics (use K-Factor if nonlinear loads >15%)
- Evaluate environmental conditions (consider derating)
- Calculate Total Cost of Ownership (not just price)
- Confirm enclosure specs for heat dissipation and safety standards
FAQ: Transformer Sizing in Industrial Applications
Q1: What size transformer is best for EV charging stations?
A: For installations with 10+ charging points, consider 300–500 kVA, K-20 rated transformers. Harmonic distortion and fast charging demand must be considered.
Q2: Is it safe to oversize a transformer?
A: Not usually. Oversizing increases no-load losses and may void your ROI. Use demand forecasting instead.
Q3: What is the difference between load and no-load losses?
A: Load losses occur only when current flows. No-load (core) losses occur continuously as long as the unit is energized.
Q4: Can I use a standard transformer with VFDs or UPS units?
A: Not recommended. Use K-rated units or specify harmonics tolerance explicitly in your RFQ.
Q5: What are signs of transformer undersizing?
A: Overheating, frequent tripping, humming noises, and degraded insulation lifespan.
