Global metal fabrication buyers are practical: they want suppliers who can consistently deliver precise shapes, clean finishes, and stable costs. A stretch forming press provides exactly that. By stretching a metal sheet under controlled tension, it achieves flawless curves with minimal springback and surface defects. For OEM buyers sourcing electrical enclosures, control cabinets, or architectural panels, this means fewer adjustments, faster assembly, and consistent quality across every batch.
With over two decades of experience in sheet metal fabrication, YISHANG combines advanced hydraulic stretch forming presses with strict ISO 9001 process control and OEM/ODM customization. This article explains how stretch forming works, why it matters for industrial procurement, and how it supports high-volume orders with consistent precision.
Why Stretch Forming Matters for Overseas Bulk Orders
Traditional forming methods such as press bending or rolling are fine for basic radii, but they often create hidden costs when scaling up. Compression on one side and stretching on the other can cause wrinkles or shape drift—especially in large aluminum or stainless-steel panels. Stretch forming eliminates these issues by applying even tensile stress across the entire sheet.
For procurement teams, this translates into three concrete benefits:
Design Protection
Stretch forming maintains dimensional tolerance around ±0.5 mm for many sheet applications. Curved aluminum doors, architectural panels, and stainless-steel covers come out clean and repeatable—protecting both form and function.
Production Stability
Consistent forming means fewer downstream adjustments in welding, drilling, or assembly. Your next order will fit just as the first one did.
Cost Control
Fewer rejects and less manual correction reduce total landed cost. In export projects where every rework delay matters, stretch forming can improve yield rates above 97%.
Action Benefit: Fewer variables, fewer risks, and predictable cost—exactly what OEM buyers expect in long-term partnerships.
How a Stretch Forming Press Works – Controlled Tension, Predictable Geometry

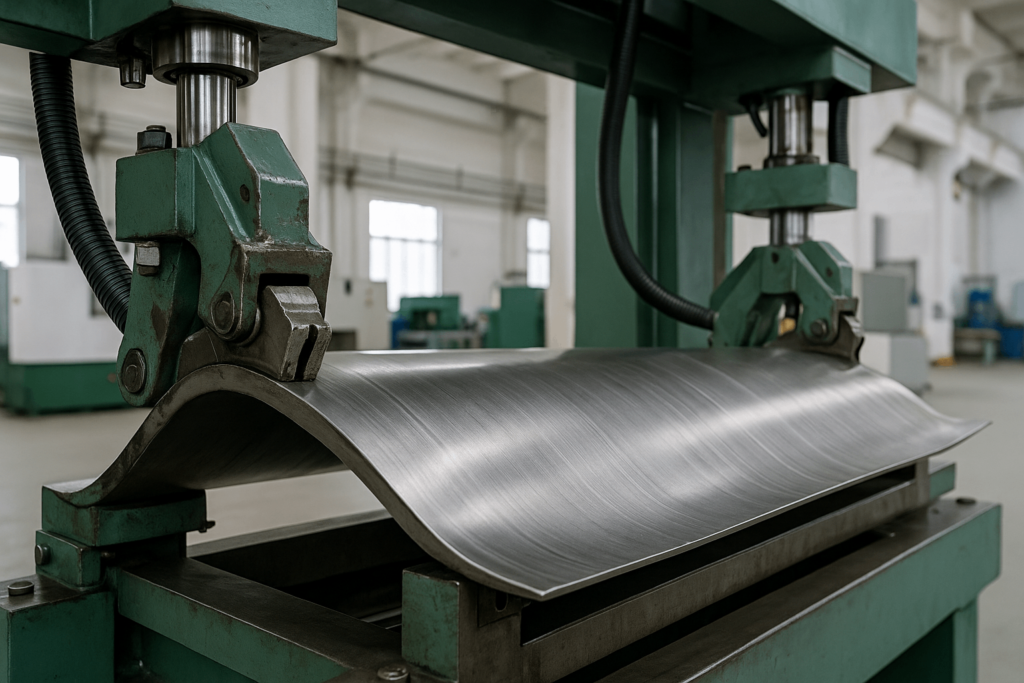

A hydraulic stretch forming press integrates precision mechanics and CNC intelligence. The process involves clamping the sheet, applying controlled tension, and pressing it against a die until the desired curve forms.
Tension and Motion Control
Sensors measure force and elongation throughout forming. The controller keeps tension within ±2%, preventing springback and ensuring each part matches the original drawing. Every cycle’s data curve can be logged for traceability—an important E-E-A-T trust factor.
Material Adaptability
| Material | Elongation | Forming Pressure | Typical Application |
|---|---|---|---|
| Aluminum 6061 / 2024 | 2–4% | 160–220 MPa | Architectural panels, equipment housings |
| Stainless Steel 304 / 316 | 1–2% | 480–520 MPa | Electrical enclosures, control boxes |
| Carbon / Galvanized Steel | 1–3% | 280–360 MPa | Industrial cabinets, telecom enclosures |
Each metal type needs its own forming speed and pressure curve. For aluminum, tension must stay high to avoid ripples; for stainless steel, slower forming protects the surface. YISHANG calibrates each die and verifies load accuracy before production, ensuring consistent shape retention.
Process Transparency
All data—tension, stroke, and die movement—is recorded. If variations occur, the forming record identifies root causes quickly. This transparency enhances both supplier accountability and buyer confidence.
Solving Real Project Problems – Surface, Consistency, and Cost
Every bulk order involves three risks: surface quality, dimensional stability, and hidden rework cost.
Surface Quality
Because the sheet is kept under tension, it doesn’t wrinkle or buckle. This makes it ideal for stainless steel enclosures, aluminum control stations, or telecom cabinets requiring smooth, paint-ready surfaces.
Dimensional Stability
Stretch forming compensates for small variations in material hardness or thickness. Whether it’s the first 10 or the 500th piece, the shape remains identical—minimizing fitting errors and assembly time.
Cost Efficiency
Studies in industrial fabrication show that replacing manual correction with hydraulic stretch forming reduces scrap by 5–8% and shortens cycle time by 15–20%. These measurable savings appeal directly to procurement professionals seeking ROI proof.
Action Benefit: Reduced scrap, faster throughput, and a measurable improvement in yield—all contributing to lower total project cost.
Engineering Collaboration and Customization for OEM/ODM Orders
Modern buyers want flexibility, not standard catalog boxes. Stretch forming supports full customization for IP65/IP68, NEMA-rated, or bespoke enclosure designs.
From Design to Validation
YISHANG engineers review every 3D drawing for minimum radius and material feasibility. Simulation software predicts strain distribution before die production, avoiding costly trial-and-error. Once approved, the forming data is stored under your project ID, ensuring repeat orders use identical parameters.
Materials and Finishes
Buyers can specify stainless steel, aluminum, galvanized, or carbon steel with surface treatments like powder coating, anodizing, or polishing. Each process follows ISO 9001 quality control and RoHS compliance.
Communication and Accountability
Every OEM/ODM project has a dedicated engineer who reports forming progress, inspection results, and delivery schedules. This builds supply-chain reliability and aligns production timelines with buyer expectations.
Action Benefit: A seamless engineering-to-production workflow that protects design intent and reduces sourcing risk.
Where Stretch Forming Creates Real Value – Industry ROI Examples
Stretch forming is valuable when both performance and appearance matter.
Architecture and Construction
Large curved aluminum façade panels benefit from seamless curvature and uniform reflection. Forming up to 3-meter panels with no visible welds improves both structural integrity and aesthetics.
Electrical and Industrial Equipment
For control cabinets, electrical enclosures, and battery housings, precise forming guarantees IP/NEMA sealing accuracy and stable door alignment. That means fewer QA rejections and faster installation.
Energy and EV Applications
Stretch forming produces lighter yet stronger frames for solar battery and EV charger enclosures. Improved surface finish and dimensional precision reduce assembly steps and logistics costs.
In one case, stretch forming improved product yield by 8% and reduced QA handling time by 20%. Over thousands of parts, those numbers mean real profit margin for distributors.
Action Benefit: Tangible savings and higher customer satisfaction in every shipment.
Quality System, Certification, and Reliability Assurance
Overseas buyers value suppliers who document every process. YISHANG operates under ISO 9001:2015 and maintains full RoHS compliance.
Controlled Quality Flow
- Material inspection: Verify tensile strength (e.g., SS304 ≥ 520 MPa) and surface condition.
- Process control: Record tension, elongation, and stroke for every batch.
- Final inspection: Use CMM and tension records for geometric verification.
Certification and Standards
Compliance with ASTM A240, GB/T 20878, and IP/NEMA ratings supports global project documentation. Providing inspection reports and forming records adds credibility during customs clearance or end-customer audit.
Long-Term Trust
Transparency builds partnership trust. Buyers can request forming records or inspection sheets anytime, ensuring confidence in repeat orders.
Action Benefit: Quality that’s not claimed—but recorded, traceable, and verifiable.
Frequently Asked Questions (FAQ)
Q1: What materials can be stretch formed?
Aluminum, stainless steel, carbon steel, and galvanized steel sheets are all compatible, depending on required radius and finish.
Q2: How accurate is hydraulic stretch forming?
Typically, forming accuracy reaches ±0.5 mm for most panels with over 95% repeatability between production runs.
Q3: Can I request a custom forming die?
Yes. OEM/ODM customers can provide 2D or 3D drawings; the die will be built and validated before production.
Q4: What certifications does YISHANG have?
ISO 9001:2015, RoHS compliance, and adherence to ASTM/GB material standards.
Conclusion – Controlled Forming, Reliable Partnership
Stretch forming offers more than aesthetic precision—it offers measurable stability for bulk metal fabrication. It reduces deformation, enhances surface quality, and ensures consistent geometry batch after batch. For overseas buyers, it’s a guarantee of lower risk, higher quality, and predictable supply.
YISHANG integrates hydraulic stretch forming with CNC machining, surface finishing, and assembly under a traceable quality system. That’s why our OEM partners trust us with their enclosure and panel production year after year.
Need reliable, curved, or precision-formed metal parts? Send your inquiry to YISHANG and our engineers will analyze your drawings, provide feasible forming solutions, and deliver parts ready for your production line.
